Service Hints & Tips |
Document ID: GSMH-3GGEQG |
Aptiva - 2161 Removals and replacements - Power supply
Applicable to: World-Wide
2040 - Power Supply
Disconnect any cables necessary for removal.
Remove the power supply mounting screws.
Lift out the power supply.

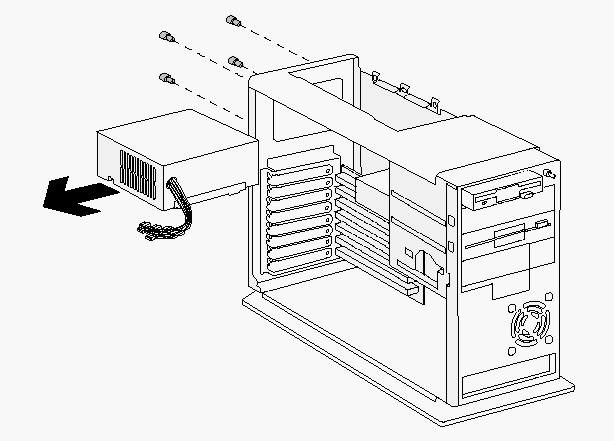

Figure 4-10. Power Supply
|
