IBM ValuePoint - Type 6382 system board
Applicable to: World-Wide
6382 325T/S System Board:

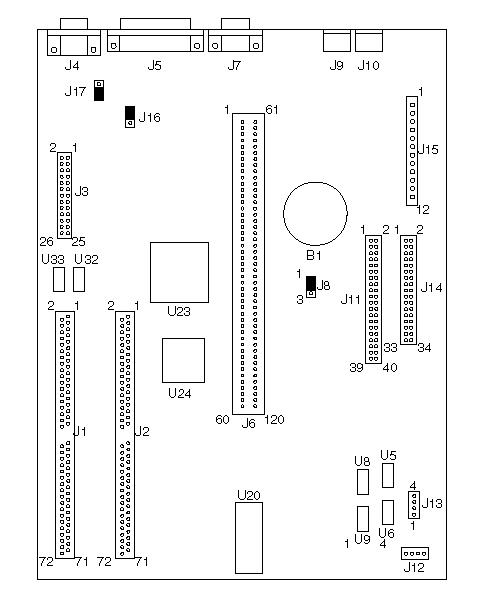

Figure 3. 6382 325T/S:
6382 325T/S System Board:
|
B1 |
Battery |
|
J1 |
Memory-Module Socket 1 |
|
J2 |
Memory-Module Socket 0 |
|
J3 |
Video Feature Connector |
|
J4 |
Video Port |
|
J5 |
Parallel Port |
|
J6 |
Riser Connector |
|
J7 |
Serial Port |
|
J8 |
Password Bypass |
|
J9 |
Mouse Port |
|
J10 |
Keyboard Port |
|
J11 |
Hard Disk Connector |
|
J12 |
Beeper Bypass |
|
J13 |
Pins 1 and 2 - Power-On LED |
|
J14 |
Diskette Connector |
|
J15 |
Power Connector |
|
J16 |
IRQ9 |
|
J17 |
VGA Enable |
|
U5 |
512K X 9 System Memory |
|
U6 |
512K X 9 System Memory |
|
U8 |
512K X 9 System Memory |
|
U9 |
512K X 9 System Memory |
|
U20 |
BIOS |
|
U23 |
Math Coprocessor |
|
U24 |
386SLC Processor |
|
U32 |
256K X 16 Video Memory |
|
U33 |
256K X 16 Video Memory |
6382 /S System Board (Type 1):
(425SX, 433SX, 433DX, or 466DX2)

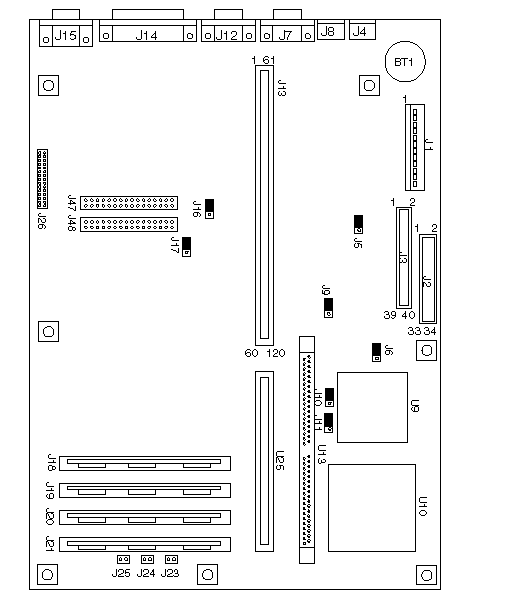

Figure 4. 6382 /S (Type 1)
6382 /S System Board (Type 1):
(425SX, 433SX, 433DX, or 466DX2)
|
BT1 |
Battery |
|
J1 |
Power Connector |
|
J2 |
Diskette Connector |
|
J3 |
Hard Disk Connector |
|
J4 |
Keyboard Connector |
|
J5 |
BootBlock (not used: do not change) |
|
J6 |
Write Disable |
|
J7 |
Serial Port (Comm A) |
|
J8 |
Mouse Port |
|
J9 |
Password Bypass |
|
J10 |
Processor Upgrade |
|
J11 |
Processor Upgrade |
|
J12 |
Serial Port (Comm B) |
|
J13 |
Riser Connector |
|
J14 |
Parallel Port |
|
J15 |
Video Port |
|
J16 |
Monochrome Adapter |
|
J17 |
System Board Video Enable |
|
J18 |
Memory-Module Socket, MEM 1 |
|
J19 |
Memory-Module Socket, MEM 2 |
|
J20 |
Memory-Module Socket, MEM 3 |
|
J21 |
Memory-Module Socket, MEM 4 |
|
J23 |
Power-On LED |
|
J24 |
Hard Disk LED |
|
J25 |
Speaker |
|
J26 |
Video Feature Connector |
|
J47 |
Video Memory Connector |
|
J48 |
Video Memory Connector |
|
U9 |
486SX Processor |
|
U10 |
486DX or 486DX2 Processor Upgrade Socket |
|
U13 |
Cache Socket |
|
U25 |
Riser Connector Extension |
Note:
Jumpers should be set as shown.
6382 /S System Board (Type 2):
(425SX, 433SX, 433DX, or 466DX2)

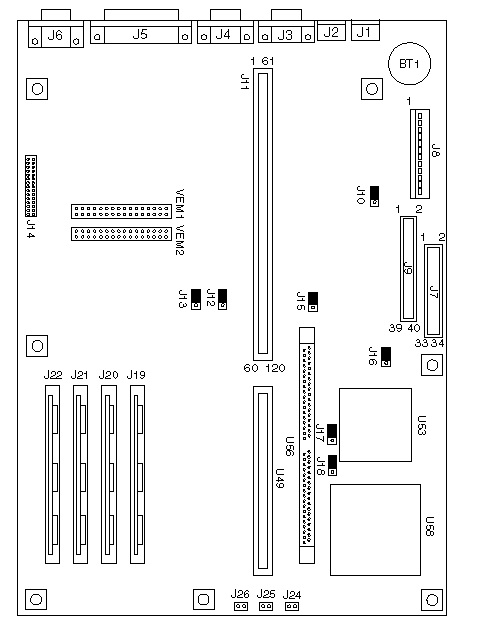

Figure 5. 6382 /S (Type 2)
6382 /S System Board (Type 2)
(425SX, 433SX, 433DX, or 466DX2):
|
BT1 |
Battery |
|
J1 |
Keyboard Connector |
|
J2 |
Mouse Port |
|
J3 |
Serial Port (Comm A) |
|
J4 |
Serial Port (Comm B) |
|
J5 |
Parallel Port |
|
J6 |
Video Port |
|
J7 |
Hard Disk Connector |
|
J8 |
Power Connector |
|
J9 |
Diskette Connector |
|
J10 |
BootBlock (not used: do not change) |
|
J11 |
Riser Connector |
|
J12 |
Monochrome Adapter |
|
J13 |
System Board Video Enable |
|
J14 |
Video Feature Connector |
|
J15 |
Password Bypass |
|
J16 |
Write Disable |
|
J17 |
Processor Upgrade |
|
J18 |
Processor Upgrade |
|
J19 |
Memory-Module Socket, MEM 1 |
|
J20 |
Memory-Module Socket, MEM 2 |
|
J21 |
Memory-Module Socket, MEM 3 |
|
J22 |
Memory-Module Socket, MEM 4 |
|
J24 |
Power-On LED |
|
J25 |
Hard Disk LED |
|
J26 |
Speaker |
|
U49 |
Riser Connector Extension |
|
U53 |
486SX Processor |
|
U56 |
Cache Socket |
|
U58 |
486DX or 486DX2 Processor Upgrade Socket |
|
VEM1 |
Video Memory Connector |
|
VEM2 |
Video Memory Connector |
Note:
Jumpers should be set as shown.
|
