Service Hints & Tips

Document ID: BMOE-425R7F

TP 1400 - LCD Panel and LCD Cable Removal

Applicable to: World-Wide

The following information is intended for IBM Dealers and Authorized Servicers only. Customers attempting to follow any of the procedures below may void their warranty.

• Battery Assembly
• Keyboard
• Hard Disk Drive and HDD Heatsink
• CPU Heatsink
• LCD Assembly
• Upper Cover (Keyboard Bezel)

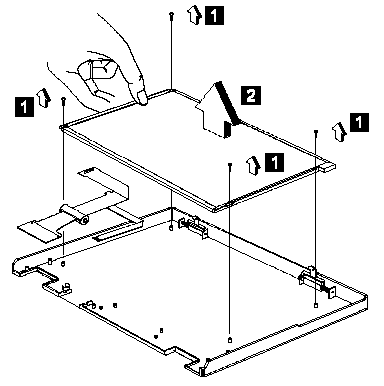

Step	Size (Quantity)	Head & Color	Torque	Memo
1	M3 x 5L (4)	Bind head, black	3.2 kgf-cm

Note: Make sure you use the correct screw for replacement.

Attention: After you replace the LCD or inverter, follow the instructions in "Setting the Inverter ID"

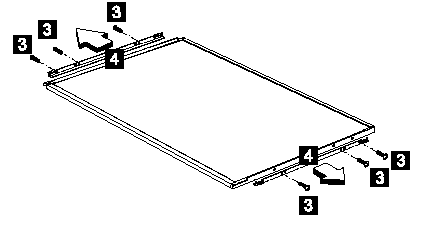

13.3" inch LCD Unit

Step	Size (Quantity)	Head & Color	Torque	Memo
1	M3 x 3.5L (4)	Bind head, silver	1.6 kgf-cm

Note: Make sure you use the correct screw for replacement.

	Search Keywords
	Document Category	Hardware Installation/Configuration, Hardware Maintenance Information
	Date Created	11-11-98
	Last Updated	12-11-98
	Revision Date
	Brand	IBM ThinkPad
	Product Family	ThinkPad i Series 1400
	Machine Type	2611
	Model	Various
