Parts Information |
Document ID: DETR-3YRLL5 |
Aptiva - 2138 CD-ROM/DVD-ROM and modem service parts
Applicable to: World-Wide
|
Asm-Index |
FRU Number |
Description |
|

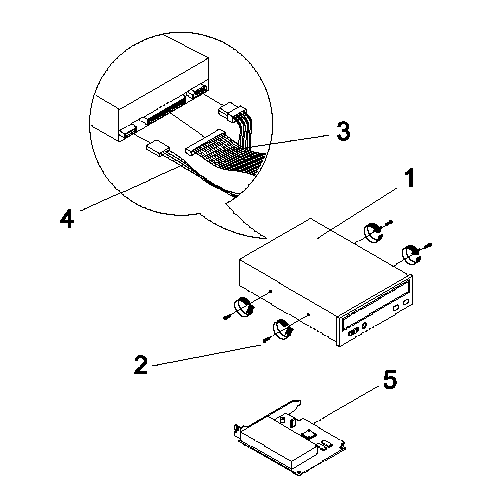

4-1 |
10J6647 |
CD-ROM (24X) |
|
4-2 |
01K4259 |
Mounting Screw for CD-ROM |
|
4-3 |
01K4224 |
CD-ROM IDE Cable |
|
4-4 |
02K2339 |
CD-ROM Drive Audio Cable |
|
4-4 |
02K2575 |
DVD II |
|
4-5 |
02K2294 |
Modem, CIS 56K - D/F/V (JP) |
|
4-5 |
02K2639 |
Modem, CIS 56K - D/F/V (US,CA,TW) |
|
4-5 |
10L6633 |
Modem, GVC 56 - D/F (US,CA) |
|
4-5 |
02K2632 |
Modem, GVC 56K - D/F (UK, GE, SW, DK, NO, FI, BD, BF, FR) |
|
4-5 |
02K2587 |
Modem, GVC 56K - D/F (SG,SF) |
|
4-5 |
02K2633 |
Modem, GVC 56K - D/F (IT) |
|
4-5 |
02K2610 |
Modem, GVC 56K - D/F (SP) |
|
4-5 |
02K2640 |
Modem, GVC 56K -D/F/V (CN) |
|

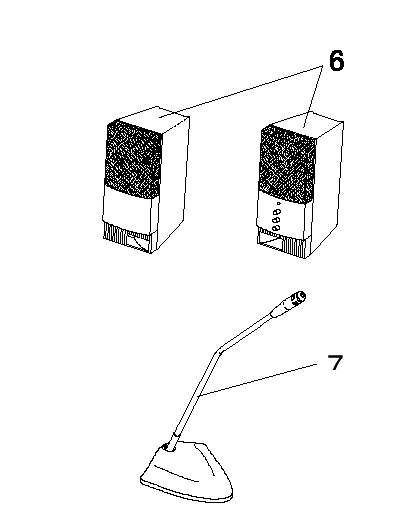

4-6 |
02K0322 |
Speaker, Jazz, 3W |
|
4-NS |
02K2312 |
Speaker Adapter, 3W, UL/CSA |
|
4-NS |
02K2313 |
Speaker Adapter, 3W, BS |
|
4-NS |
02K2314 |
Speaker Adapter, 3W, TUV/CE |
|
4-7 |
01K4191 |
Microphone, Unidirectional, Jazz |
|
4-7 |
02K2320 |
Microphone, Noise Cancelling, Andrea |
|
4-7 |
10L6656 |
Microphone, Noise Cancelling, NC-8, |
|
