Netfinity EXP10 - System Parts Listing

Applicable to: World-Wide

Source: Hardware Maintenance Manual

System

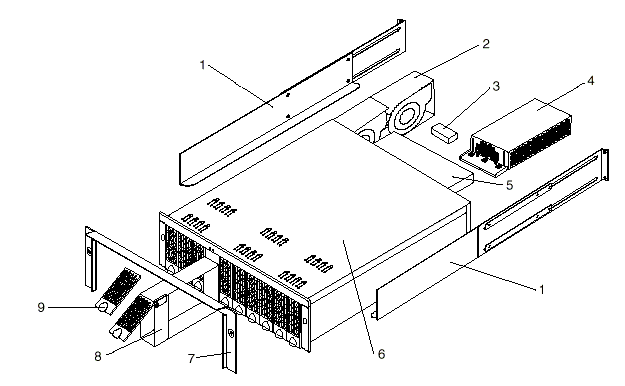

Index	System (IBM Netfinity EXP10 3520) Model 1RU, 1RX	FRU No.
1	Rail Kit	01K6670
2	Blower Assembly	01K6672
3	SCSI Terminator	92F0432
4	250W Power Supply Assembly	01K6676
5	Electronic Module (ESM)	01K6674
6	Midplane/Frame Note: The midplane board and frame are replaced as a unit. If either part is needed, order the above FRU.	01K6673
7	Bezel, Front	01K6668
8	Blank Tray, with bezel	01K6667
9	Bezel, HF Tray	01K6666
	Misc Hardware Kit ESM Lever Screws (2 each) Power Supply Lever Screw Power Cord Retainer Power Cord Retainer Knurled Nut EMC Clips (6 each) Tray Spring 6-32 Tray Spring Screw 6-32X1/4-Inch Drive Screws (2 each) ESM Latch Left ESM Latch Right Power Supply Latch Light Pipes (2 each) 6-32X1/2-Inch Screw M6 Rail Screws (2 each) M5X8L Screw M3X5L Screw Large Spacer (2 each)	01K6671
	SCSI Cable, .4M external	01K6669
	4GB Hard Disk Drive with tray and bezel (7,200 RPM)	01K6675
	9GB Hard Disk Drive with tray and bezel (7,200 RPM)	01K6679
	4GB Hard Disk Drive with tray and bezel (10,000 RPM)	01K6682
