Service Hints & Tips |
Document ID: LWIK-3R6D96 |

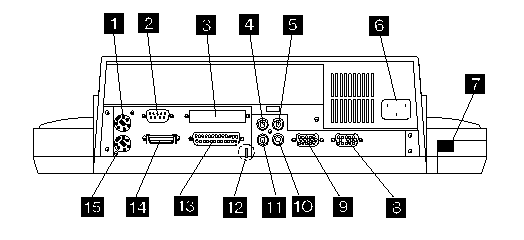

TP Dock I - Rear View
Applicable to: World-Wide
|
1 |
Mouse/Pointing Device Connector |
|
2 |
Serial Connector |
|
3 |
External SCSI Connector |
|
4 |
Audio-Out-Left Jack |
|
5 |
Speaker-In-Left Jack |
|
6 |
Power Cord Connector |
|
7 |
Cable Opening |
|
8 |
Video-in Connector |
|
9 |
External Display Connector |
|
10 |
Speaker-In-Right Jack |
|
11 |
Audio-Out-Right Jack |
|
12 |
Security Hook |
|
13 |
Parallel Connector |
|
14 |
External Diskette Drive Connector |
|
15 |
Keyboard/Numeric keypad Connector |
|
Search Keywords |
| |
|
Hint Category |
General Information | |
|
Date Created |
28-01-98 | |
|
Last Updated |
06-05-98 | |
|
Revision Date |
27-04-99 | |
|
Brand |
IBM ThinkPad | |
|
Product Family |
ThinkPad Docking Stations | |
|
Machine Type |
3545 | |
|
Model |
001 | |
|
TypeModel |
| |
|
Retain Tip (if applicable) |
| |
|
Reverse Doclinks |
3R6D5Q, 3HSBKT |
