Product Information

Document ID: DDSE-465TYZ

ServeRAID 3H - Photos

Applicable to: World-Wide

IBM Netfinity ServeRAID 3H Ultra SCSI Adapter (P/N 01K7207)

- Buy IBM

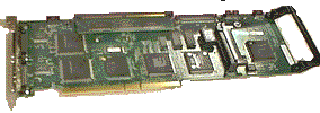

Product Photo

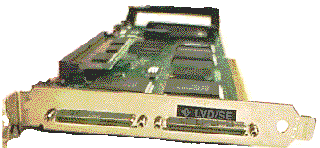

External Connections

• Channel 1 connector - 0.8mm female VHDCI
• Channel 2 connector - 0.8mm female VHDCI

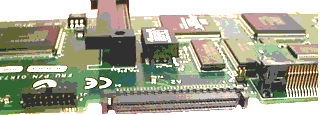

32MB Battery Backup Connector

DASD 68 pin (female) 3rd Channel Connector

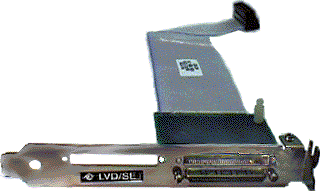

3rd Channel Cable / Backplate Bracket (P/N 01K7356)

• This internal cable comes with the ServeRAID 3H Ultra SCSI adapter.
• It allows the internal channel 3 to be routed to a 3rd external 0.8mm (female) VHDCI connection.
• It includes a replacement bulkhead bracket which allows for 3 connectors in one bracket slot.

DASD Status Cable (P/N 76H5399)

• This cable comes with the ServeRAID 3H Ultra SCSI Adapter.
• Compatible with PC Server 320, 520, and 720 models with Type II Backplanes.

Cable option quick reference

Controller option quick reference
