Service Hints & Tips |
Document ID: DDSE-3QRMMT |
PC Server 720 - Hot swap backplane locations
Applicable to: World-Wide
Hot-Swap Backplane

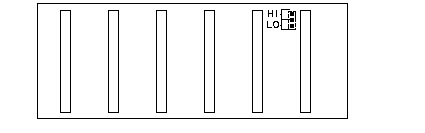

Front View
SCSI ID Jumper
If two backplanes are connected to the same adapter, one backplane must be set to high and the other one to low.
|
SCSI ROM Address ID Jumper Setting |
Description |
|
HI = High |
Assigns SCSI IDs 8 to D to the backplane |
|
LO = Low |
Assigns SCSI IDs 0 to 5 to the backplane |

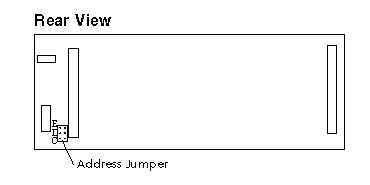

Rear View
ROM Address Jumper Setting
Notes:
- The following settings are for PC Server 720 computers only.
- If more than one backplane is installed in the computer, each backplane must have a different ROM address setting.
- Do not install a ROM address jumper on backplanes installed in PC Server 320 computers.
|
Jumper Position |
Description |
|
C |
Address for a backplane installed in Bank C |
|
D |
Address for a backplane installed in Bank D |
|
E |
Address for a backplane installed in Bank E |
Termination (Hot-Swap Back Plane)
The hot-swap back plane is automatically terminated. Drives connected to the hot-swap back plane should not be terminated.

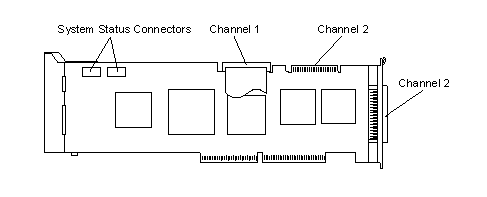

SCSI-2 Fast/Wide RAID Adapter/A

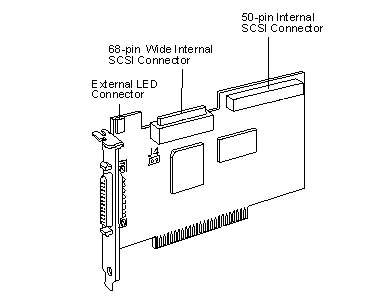

SCSI Fast/Wide Adaptec Adapter
|
