Parts Information

Document ID: DETR-3UQQU4

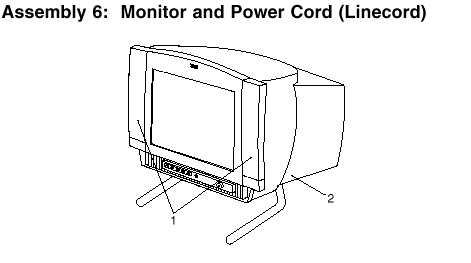

Aptiva - 2159 Monitor and Power Cord (linecord)

Applicable to: Japan, Canada, United States

Asm- Index	Part Number	Units	Description
6-1	60H7538	1	Speaker Grill, 15 Inch
-1	60H7555	1	Speaker Grill, 17 Inch
-2			Monitor (includes I/O cable) EQ = Equatorial NH = Northern hemisphere SH = Southern hemisphere LV = Low Voltage HV = High Voltage UV = Universal Voltage (auto-sense) See the "Appendix B, ôModel/Monitor Configurations and FRU Part Numbers" on page B-1 of the HMM for model specifications. For monitors sold separately from IBM Aptiva system units, see the service information provided with the monitor. 15-Inch Monitor - Type 7095 (13.7-Inch diagonal viewing area) Multimedia Monitor
- 2	60H7534	1	- .28, 100/240V 50/60Hz, NH/UV (593)
- 2	60H9235	1	- .28, 100/240V 50/60Hz, NH/UV (5C3)
- 2	60H7537	1	- .28, 100/240V 50/60Hz, NH/UV (Japan) (596)
- 2	60H9238	1	- .28, 100/240V 50/60Hz, NH/UV (Japan) (5B6)
- 2	60H9239	1	- .28, 100/240V 50/60Hz, NH/UV (Japan) (5C6)
			17-Inch Monitor - Type 7097 (15.7-Inch diagonal viewing area) Multimedia Monitor
-2	60H7551	1	- .28, 100/240V 50/60Hz, NH/UV (593)
-2	60H9235	1	- .28, 100/240V 50/60Hz, NH/UV (5C3)
-2	60H7554	1	- .28, 100/240V 50/60Hz, NH/UV (Japan) (596)
-2	60H9238	1	- .28, 100/240V 50/60Hz, NH/UV (Japan) (5B6)
-2	60H9239	1	- .28, 100/240V 50/60Hz, NH/UV (Japan) (5C6)
-NS	60H7570	1	Swivel 15 Inch
-NS	60H7571	1	Swivel 17 Inch
			Power Cord (linecord) for monitor and system unit
-NS	93F2364		- U.S.
-NS	93F2364		- Canada (English)
-NS	76H1583		Monitor Mounting Screws

	Search Keywords
	Document Category	Service Parts
	Date Created	22-05-98
	Last Updated	15-01-99
	Revision Date	22-05-99
	Brand	IBM Aptiva
	Product Family	Aptiva
	Machine Type	2159
	Model	all
	TypeModel
