Service Hints & Tips |
Document ID: GSMH-3CFLG9 |
|
This document is provided to IBM and our Business Partners to help sell and/or service IBM products. It is not to be distributed beyond that audience or used for any other purpose. |
IBM ValuePoint - Type 6381 system board layout
Applicable to: World-Wide
System Board Layouts:

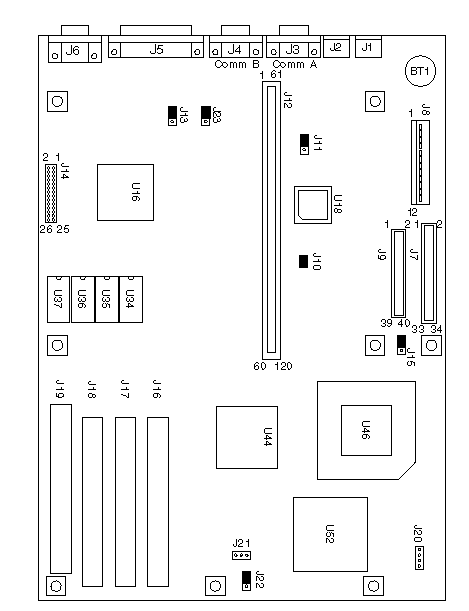

6381 SX System Board:
Figure 1. 6381 SX:
6381 SX System Board:
|
BT1 |
Battery |
|
J1 |
Keyboard Connector |
|
J2 |
Mouse Port |
|
J3 |
Serial Port (Comm B) |
|
J4 |
Serial Port (Comm A) |
|
J5 |
Parallel Port |
|
J6 |
Video Port |
|
J7 |
Hard Disk Connector |
|
J8 |
Power Supply Connector |
|
J9 |
Diskette Connector |
|
J10 |
Mouse Disable |
|
J11 |
Flash Memory |
|
J12 |
Riser Card Connector |
|
J13 |
Video Enable |
|
J14 |
Video Feature Connector |
|
J15 |
Write Protect |
|
J16 |
Memory-Module Socket, MEM 1 |
|
J17 |
Memory-Module Socket, MEM 2 |
|
J18 |
Memory-Module Socket, MEM 3 |
|
J19 |
Memory-Module Socket, MEM 4 |
|
J20 |
Hard Disk and Power-On LEDs |
|
J21 |
Speaker Connector |
|
J22 |
Speaker Enable |
|
J23 |
Video Interrupt Enable |
|
U34 |
Video Memory Connector |
|
U35 |
Video Memory Connector |
|
U36 |
Video Memory Connector |
|
U37 |
Video Memory Connector |
|
U46 |
Processor Upgrade Socket |
Note:
Jumpers are shown in the default position.

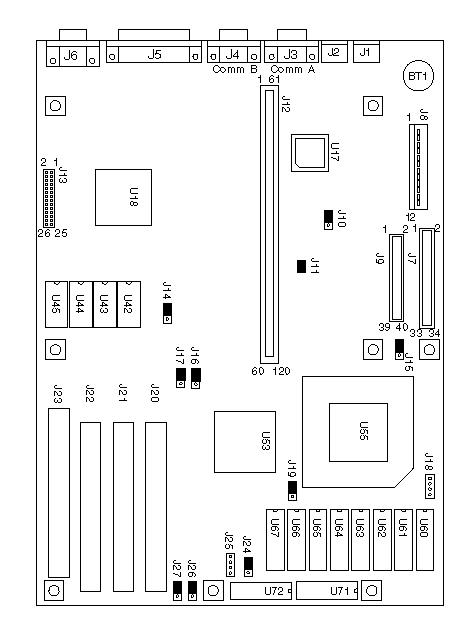

6381 DX or DX2 System Board:
Figure 2. 6381 DX or DX2
6381 DX or DX2 System Board:
|
BT1 |
Battery |
|
J1 |
Keyboard Connector |
|
J2 |
Mouse Port |
|
J3 |
Serial Port (Comm B) |
|
J4 |
Serial Port (Comm A) |
|
J5 |
Parallel Port |
|
J6 |
Video Port |
|
J7 |
Hard Disk Connector |
|
J8 |
Power Supply Connector |
|
J9 |
Diskette Connector |
|
J10 |
Flash Memory |
|
J11 |
Mouse Disable |
|
J12 |
Riser Card Connector |
|
J13 |
Video Feature Connector |
|
J14 |
Video Interrupt Enable |
|
J15 |
Write Protect |
|
J16 |
Video Enable |
|
J17 |
Video Enable |
|
J18 |
Hard Disk and Power-On LEDs |
|
J19 |
Cache (Rear = 0 or 128K, Front = 256K) |
|
J20 |
Memory-Module Socket, MEM 1 |
|
J21 |
Memory-Module Socket, MEM 2 |
|
J22 |
Memory-Module Socket, MEM 3 |
|
J23 |
Memory-Module Socket, MEM 4 |
|
J24 |
Speaker Enable |
|
J25 |
Speaker Connector |
|
J26 |
Cache (Rear = 0 or 128K, Front = 256K) |
|
J27 |
Cache (Rear = 0 or 128K, Front = 256K) |
|
U42 |
Video Memory Connector |
|
U43 |
Video Memory Connector |
|
U44 |
Video Memory Connector |
|
U45 |
Video Memory Connector |
|
U55 |
486DX/DX2 (and Upgrade) Processor Socket |
|
U60 |
External Cache Connector |
|
U61 |
External Cache Connector |
|
U62 |
External Cache Connector |
|
U63 |
External Cache Connector |
|
U64 |
External Cache Connector |
|
U65 |
External Cache Connector |
|
U66 |
External Cache Connector |
|
U67 |
External Cache Connector |
|
U71 |
External Cache Enable Connector |
|
U72 |
External Cache Enable Connector |
|
