Netfinity 3000 - Cabling

Applicable to: World-Wide

Cabling
Before cabling the server:

- Make sure that you have an adequate number of properly grounded electrical outlets for the server, monitor, and any other options that you intend to install.

- Place the server in a location that is dry. Rain or spilled liquids might damage the server.

Note To allow for air circulation, be sure to maintain the clearances.

To cable the server:

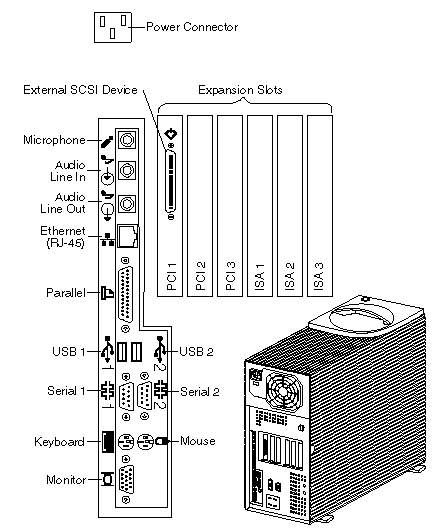

1. Use the following illustration to cable the server.

For information about Ethernet cables, see "Specifications (Ethernet Cable)".

2. Connect all power cords to electrical outlets.
