TP 355/360 - Parts Listing
Applicable to: World-Wide
Parts Listing:
Models 350x, 360x

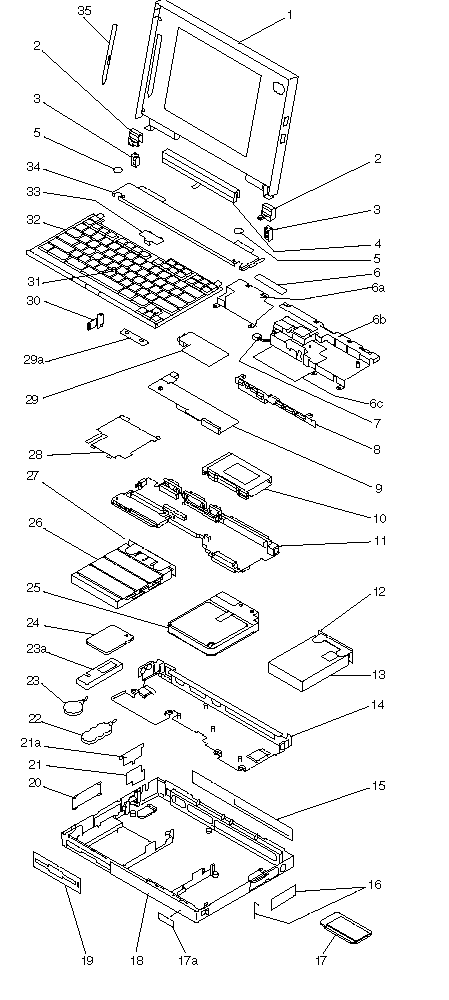

System Unit (355x, 360x):
|
Index | ||
|
1 |
LCD Assembly (355, 360) |
84G2265 |
|
LCD Assembly (355C, 360C, 360CE) |
84G5719 | |
|
LCD Assembly (355Cs, 360Cs, 360CSE) |
84G2264 | |
|
LCD Assembly (360P) |
84G5721 | |
|
LCD Assembly (360PE) |
85G9678 | |
|
2 |
Hinge Cover (355, 360) |
84G2303 |
|
Hinge Cover (355C, 360C, 360CE) |
84G5703 | |
|
Hinge Cover (355Cs, 360Cs, 360CSE) |
84G2258 | |
|
Hinge Cover (360P, 360PE) |
84G5704 | |
|
3 |
Hinge Bracket, Right, Left |
66G5057 |
|
4 |
Status Indicator Assembly (355) |
84G2299 |
|
Status Indicator Assembly (355C) |
84G5722 | |
|
Status Indicator Assembly (355Cs) |
84G2298 | |
|
Status Indicator Assembly (360) |
84G2297 | |
|
Status Indicator Assembly (360C) |
84G5718 | |
|
Status Indicator Assembly (360Cs) |
84G2251 | |
|
Status Indicator Assembly (360CE) |
85G2408 | |
|
Status Indicator Assembly (360CSE) |
85G2407 | |
|
Status Indicator Assembly (360P) |
84G5720 | |
|
Status Indicator Assembly (360PE) |
85G9646 | |
|
5 |
Screw Cover |
66G5046 |
|
6 |
Small Shield (355x, 360, 360C, 360Cs, 360P) |
84G5860 |
|
Small Shield (360CE, 360CSE, 360PE) |
84G5639 | |
|
6a |
Speaker Shield Assembly |
84G2255 |
|
6b |
Insulator |
84G5705 |
|
7 |
Speaker (Includes speaker holder) |
66G3754 |
|
8 |
Interposer Card (355x, 360, 360C, 360Cs, 360P) |
85G0959 |
|
Interposer Card (360PE) |
85G9672 | |
|
Interposer Card (360CE, 360CSE) |
85G2403 | |
|
9 |
DC/DC Card |
84G2253 |
|
10 |
PCMCIA Slot Assembly (1-slots, 355x) |
84G2273 |
|
PCMCIA Slot Assembly (2-slots, 360x) |
66G5121 | |
|
11 |
System Board (355x) |
84G2300 |
|
System Board (360, 360C, 360Cs, 360P) |
84G2252 | |
|
System Board (360CE, 360CSE, 360PE) |
85G2409 | |
|
12 |
HDD Removal Strap |
66G5122 |
|
13 |
Hard Disk Drive (Includes strap, index 12 ) | |
|
125MB |
84G2271 | |
|
170MB |
66G5066 | |
|
250MB |
84G2272 | |
|
340MB |
66G5068 | |
|
540MB |
84G4319 | |
|
810MB |
85G0961 | |
|
14 |
Lower Shield (355x) |
84G2301 |
|
15 |
Rear Connector Cover (355x) |
84G2304 |
|
Rear Connector Cover (360x) |
84G2259 | |
|
16 |
PCMCIA Cover |
84G2262 |
|
17 |
PCMCIA Device | |
|
17a |
Name Labels |
66G9228 |
|
18 |
Base Cover Assemblies include coil spring, | |
|
Base Cover Assembly (355) |
84G2276 | |
|
Base Cover Assembly (355C) |
84G5717 | |
|
Base Cover Assembly (355Cs) |
84G2275 | |
|
Base Cover Assembly (360) |
84G2274 | |
|
For Benelux |
84G5707 | |
|
For Japan |
84G5708 | |
|
Base Cover Assembly (360C) |
84G5711 | |
|
For Benelux |
84G5712 | |
|
For Japan |
84G5708 | |
|
Base Cover Assembly (360Cs) |
84G2250 | |
|
For Benelux |
84G5709 | |
|
For Japan |
84G5708 | |
|
Base Cover Assembly (360CE, 360CSE) |
85G2404 | |
|
For Benelux |
85G2405 | |
|
For Japan |
85G2406 | |
|
Base Cover Assembly (360P) |
84G5714 | |
|
For Benelux |
84G5715 | |
|
For Japan |
84G5708 | |
|
Base Cover Assembly (360PE) |
85G9676 | |
|
For Benelux |
85G9681 | |
|
For Japan |
85G2406 | |
|
19 |
Bezel, Diskette Drive |
84G2260 |
|
20 |
Cover, Option Bay |
84G2261 |
|
21 |
Bracket, Audio Card (option) |
84G2306 |
|
Bracket, Internal Modem |
84G2291 | |
|
21a |
Bezel, Audio Card (option) |
84G2307 |
|
Bezel, Blank |
84G2295 | |
|
Bezel, Internal Modem |
84G2296 | |
|
22 |
Standby Battery |
66G3755 |
|
For Belgium, Dutch |
66G3761 | |
|
For Switzerland |
66G3758 | |
|
23 |
Backup Battery |
84G2263 |
|
24 |
Attachment holder |
84G2294 |
|
25 |
IC DRAM Card (See options) | |
|
26 |
Battery Pack (Nickel Metal Hydride) |
84G2146 |
|
27 |
Diskette Drive (3-mode) |
84G2269 |
|
28 |
Diskette Drive Removal Strap |
66G5123 |
|
29 |
Base Plate |
84G2293 |
|
30 |
Bracket Shield |
84G5861 |
|
31 |
Internal Modem Card (See options) | |
|
Audio Card (option) |
66G5037 | |
|
32 |
Fax/Audio Spacer (360x) |
84G5862 |
|
33 |
Keyboard Lock |
66G0031 |
|
34 |
TrackPoint II Cap |
66G6444 |
|
35 |
See Keyboard List | |
|
36 |
Leaf Spring Plate |
66G0041 |
|
37 |
Upper Cover (355Cs, 360Cs, 360CSE) |
84G2257 |
|
Upper Cover (Other models) |
84G2302 | |
|
38 |
Stylus Pen (360P, 360PE) |
66G6695 |
|
EMI Spring Plate |
85G0948 | |
|
PCMCIA Security Plate |
85G8625 | |
|
AC Adapter (100 - 240 V ac, 40W, 3-pin) |
49G2196 | |
|
For Japan (2-pin) |
49G2197 | |
|
AC Adapter (100 - 125 V ac, 30W, 3-pin) |
84G2277 | |
|
AC Adapter (35 W, 3-pin) |
85G4952 | |
|
For Japan (2-pin) |
85G6669 | |
|
AC Adapter (30 W, U.S only) |
84G2277 | |
|
DC Plug |
85G6664 | |
|
Foot (right or left) |
84G4326 |
Keyboard:
|
Arabic |
84G5909 |
|
Belgium |
84G5907 |
|
Canadian French |
84G5915 |
|
Danish |
84G5906 |
|
Dutch |
84G5904 |
|
Finnish, Swedish |
84G5903 |
|
French |
84G5900 |
|
German (Black) |
84G5898 |
|
Greek |
84G5913 |
|
Hebrew |
84G5910 |
|
Italian |
84G590 |
|
Japanese |
84G5916 |
|
Latin American |
84G5914 |
|
Norwegian |
84G5908 |
|
Portuguese |
84G5911 |
|
Spanish |
84G5905 |
|
Swiss/French |
84G5901 |
|
Swiss/German |
84G5899 |
|
Turkish |
84G5912 |
|
U.K. English |
84G5897 |
|
U.S. English |
84G5896 |
|
Russian |
84G8348 |
|
