PCServer704 - Diagram (Processor Assembly)
Applicable to: World-Wide

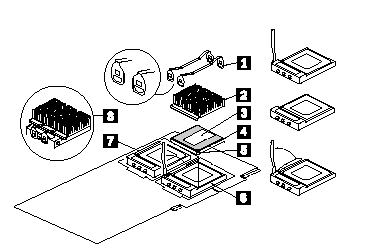

Processor Assembly
|
1. |
Heat sink retention clips |
|
2. |
Heat sink |
|
3. |
Thermal grease |
|
4. |
Processor |
|
5. |
Pin 1 location |
|
6. |
Lower processor socket with lever in open position |
|
7. |
Upper processor socket with lever in closed/locked position |
|
8. |
Complete assembly |
|
