TP SelectaDock I - Parts Locations
Applicable to: World-Wide
Locations
SelectaDock Base Model I

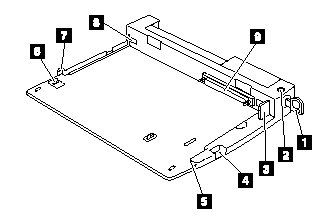

Front View
1 Security Lock
2 Lock Indicator
3 PC Card Lock
4 Right-Hand Hole
5 Computer Catch Slit
6 Computer Lock
7 Left-Hand Hole
8 Ejector
9 Docking Connector

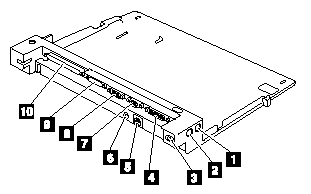

Rear View
1 Mouse/Pointing Device Connector
2 Keyboard/Numeric Keypad Connector
3 Kensington Lock Keyhole
4 Parallel Connector
5 Power Jack
6 Line-Out Jack
7 Serial Connector
8 External Display Connector
9 External Diskette Drive Connector
10 Expansion Connector
SelectaDockI

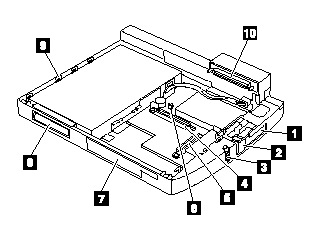

Front View
1 PCMCIA Slot
2 PC Card Lock Slide
3 SelectaDock Base ModelI Lock
4 UltraBay Connector1
5 UltraBay Connector2
6 Feature Jumper
7 Blank Bezel
8 Status Indicator
9 Docking Guide
10 Docking Connector

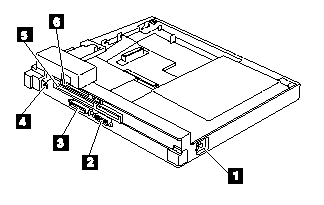

Rear View
1 Power Connector
2 MIDI/Joystick Jack
3 SCSI Connector
4 Line-Out Jack
5 ISA Adapter Card Slot
6 PCI Adapter Card Slot

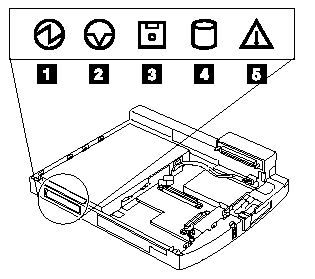

System Status Indicators
1 Docked
1 Power On
2 Suspend Mode
3 Diskette Drive In-use
4 Hard Disk In-use
5 Attention
|
