TP 765 - 1120 Upper Shield

12.369 bytes

Service Hints & Tips

Document ID: RJJR-3PGTQA

TP 765 - 1120 Upper Shield

Applicable to: World-Wide

1120 Upper Shield
Diskette Drive or CD-ROM Drive (1020)
Battery Pack (1030)
Hard Disk Drive (1040)
Top Cover (1060)
Keyboard Unit (1070)
LCD Unit (1080)
Rear IR (1090)
System Board Assembly (1110)

Step

Size (quantity)

Memo (torque)

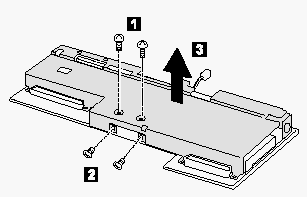

1

M2.5 x 4 mm (2)

Nylon coating (4 kgcm)

2

M2.5 x 4 mm (2)

Flathead (4 kgcm)

9

M2.5 x 4 mm (2)

Nylon coating (4 kgcm)

Note: Do not reuse a screw you removed. Use a new screw and tighten the screw to the torque specification shown.
