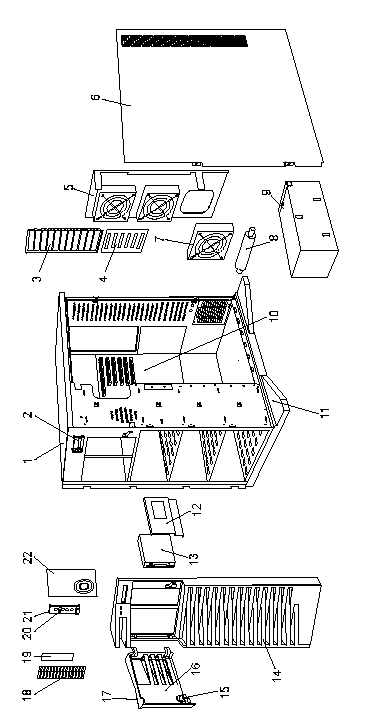

3518 SCSI Enterprise Expansion Enclosure - System Parts Listing
Applicable to: World-Wide
Parts Listings:
|
Index |
System Unit | |
|
1 |
Base Frame (4X CD-ROM) |
06H8685 |
|
2 |
Information Display Assembly |
82G3614 |
|
Display Panel Support |
06H7961 | |
|
3 |
I/O Panel Die Cast (Additional Micro Channel Blanks) |
06H8657 |
|
4 |
I/O Flex Plate |
06H8627 |
|
5 |
Fan Mounting Support |
82G3618 |
|
6 |
Right Side Door |
82G3594 |
|
7 |
Fan Assembly |
82G3616 |
|
8 |
Pedestal Wheel |
82G3609 |
|
9 |
470 Watt Power Supply |
06H3589 |
|
220 Watt Power Supply Upgrade |
06H3237 | |
|
10 |
System Board (Planar) |
06H8625 |
|
11 |
Pedestal |
82G3608 |
|
12 |
DASD Tray - Hot Swap (Wide) |
06H8631 |
|
12 |
DASD Tray - Hot Swap (Narrow) - Optional (for Option 70G8492) |
07H0744 |
|
13 |
Hard Disk Drive - Optional | |
|
14 |
Front Bezel with Shield (4X CD-ROM) |
06H9379 |
|
15 |
Keylock with Keys |
82G3606 |
|
16 |
DASD Door |
82G3596 |
|
17 |
IBM Logo (Restricted) |
82G3601 |
|
18 |
5.25-Inch Blank Bezel (4X CD-ROM) |
06H8684 |
|
19 |
Diskette Drive Bezel |
06H8670 |
|
20 |
Rubber Dome Switch Pad |
06H7873 |
|
21 |
Control Panel Bezel |
82G3607 |
|
22 |
Control Panel Card Assembly |
75H7652 |
|
4 mm DAT Autoloader - Optional |
06H7514 | |
|
Control Panel Cable Jumper |
06H8663 | |
|
DASD Mounting Plate |
82G3602 | |
|
Hinges with Screws |
82G3600 | |
|
Hot Swap Back Plane Assembly |
06H8629 | |
|
Hot Swap Cam Spring, Shaft/Knob |
07H0498 | |
|
Miscellaneous Parts Kit |
82G3611 | |
|
Miscellaneous Parts Kit (Blackplane) - Jumpers (4 each) |
07H0745 |
|
