Service Hints & Tips |
Document ID: GKEY-3JSBXV |
TP 765 - 1010 Rear Connector Door
Applicable to: World-Wide

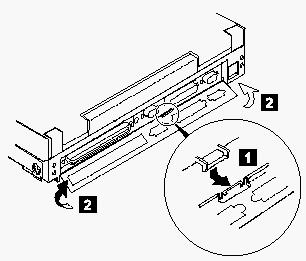

1010 Rear Connector Door
Remove the center latch 1 ;
then remove the rear connector door by flexing it 2 .
|
Search Keywords |
| |
|
Hint Category |
Hardware Maintenance Information | |
|
Date Created |
08-07-97 | |
|
Last Updated |
01-04-98 | |
|
Revision Date |
12-03-99 | |
|
Brand |
IBM ThinkPad | |
|
Product Family |
ThinkPad 765L, ThinkPad 765D | |
|
Machine Type |
9546, 9547 | |
|
Model |
Various | |
|
TypeModel |
| |
|
Retain Tip (if applicable) |
| |
|
Reverse Doclinks |
