TP General - Common Parts Listing
Applicable to: World-Wide
Common Parts Listing:
This section contains FRUs common to most IBM Portable, laptop, and notebook computers.
External Diskette Drives:
|
5.25-Inch Diskette Drive: | |
|
360KB External (4869-001) |
72X6759 |
|
360KB External (4869-501) |
72X6768 |
|
1.2MB External (4869-002) |
15X7993 |
|
1.2MB External (4869-502) |
15X7994 |
|
5.25-Inch Drive Adapter |
72X6757 |
|
5.25-Inch Drive Adapter/A |
15F7996 |
|
5.25-Inch External Diskette Drive Cable |
27F4211 |
|
Diskette Drive Bus Adapter |
72X8524 |
CD-ROM Drives:
|
Enhanced internal CD-ROM II Drive |
61G1901 |
|
Internal CD-ROM I Drive |
81F7930 |
|
Terminator Kit (for 81F7930) |
59F3530 |
|
Cleaning Kit (for 81F7930) |
59F3562 |
|
Internal CD-ROM II Drive |
92F0084 |
|
Terminator Kit (for 92F0084) |
92F0082 |
|
Media kit (for 92F0084) |
31F4232 |
|
Signal Cable |
340043 |
|
Power cable |
72X8521 |
|
Remote ID Switch Cable (3510) |
92F0086 |
|
Audio Card, Cable, Screws (3510) |
92F0085 |
|
CD Caddy |
22F9419 |
|
Rail Kit (3510) |
34F0041 |
|
Headphones |
53F3610 |
SCSI Adapters,Terminators, Cables:
|
SCSI Adapter/A (without Cache) |
85F0002 |
|
SCSI Internal Cable |
64F4217 |
|
SCSI Adapter/A (with cache) |
85F0063 |
|
Terminator, External (for 85F0063) |
33F8464 |
|
Terminator, Internal (for 85F0063) |
34F0025 |
|
Terminator, Internal (for 85F0002) |
57F2870 |
|
SCSI Fast Adapter (16 bit) |
92F0330 |
|
SCSI External Cable (for 92F0330) |
32G4089 |
|
SCSI Internal Cable (for 92F0330) |
32G0084 |
|
Terminator, Inline (space permitting) |
92F0412 |
Rewritable Optical Drives:
|
3.5-Inch Rewritable Optical Drive |
92F0167 |
|
Rewritable Optical Cartridge |
38F8647 |
|
Rewritable Optical Cartridge (5 pack) |
38F8646 |
|
Drive Mounting Slide (for 92F0167) |
85F0022 |
|
Tray with Bezel (for 92F0167) |
85F0021 |
|
Objective Lens Cleaner (for 92F0167) |
38F8681 |
|
Prism Lens Cleaner (for 92F0167) |
38F8662 |
|
3.5-Inch Enhanced Rewritable Optical Drive |
92F0167 |
|
Mounting Tray |
92F0269 |
|
Mounting Tray/Bezel (model 3510) |
92F0268 |
External Keyboard/Mouse:
|
Keyboard Cable |
72X8537 |
|
Mouse |
61X8923 |
|
Mouse Ball and Pop-Off Retainer |
33F8461 |
|
Mouse Ball and Twist-Off Retainer |
33F8462 |
|
Mouse (new Style) |
33G5420 |
|
Mouse Retainer Ring |
33G5417 |
|
Miniature Mouse |
95F5723 |
Enhanced keyboards (101/102 Key):
|
Arabic |
1391490 |
|
Belgian |
1391414 |
|
Canadian French |
1392011 |
|
Cyrillic |
1393886 |
|
Danish |
1391407 |
|
Dutch |
1391511 |
|
French |
1391402 |
|
German |
1391403 |
|
Greek |
1393285 |
|
Hebrew |
1391408 |
|
Italian |
1393395 |
|
Latin American Spanish |
1392015 |
|
Norwegian |
1391409 |
|
Portuguese |
1391410 |
|
Russian/Cyrillic |
1395622 |
|
Spanish |
1391405 |
|
Swedish/Finish |
1391411 |
|
Swiss |
1391412 |
|
Swiss/French |
1395881 |
|
Swiss/German |
1395882 |
|
Turkish |
1393286 |
|
U.K. English |
1391406 |
|
U.S. English (E/ME/A use only) |
1396790 |
|
U.S. English |
1392090 |
|
Yugoslavian |
1393669 |
Optional Enhanced Keyboards (101/102):
|
with PS/2 Style cable |
59G7980 |
|
with AT Style Cable |
59G7981 |
|
with 25mm PS/2 Trackball |
59G7982 |
|
with 25mm Serial Trackball |
59G9757 |
Keybutton Kits (101/102 Key):
|
Keybutton Kits (R), Belgian |
1392033 |
|
Keybutton Kits (R), Canadian French |
1392032 |
|
Keybutton Kits (R), Danish |
1392026 |
|
Keybutton Kits (R), Dutch |
1392034 |
|
Keybutton Kits (R), French |
6447047 |
|
Keybutton Kits (R), German |
6447048 |
|
Keybutton Kits (R), Italian |
6447049 |
|
Keybutton Kits (R), Norwegian |
1392028 |
|
Keybutton Kits (R), Portuguese |
1392029 |
|
Keybutton Kits (R), Spanish |
6447050 |
|
Keybutton Kits (R), Spanish/Latin |
1392035 |
|
Keybutton Kits (R), Swedish |
1392030 |
|
Keybutton Kits (R), Swiss / French/ German |
1392031 |
|
Keybutton Kits (R), U.K. English |
6447046 |
|
Keybutton Kits, U.S. English |
6447045 |
Japanese keyboard Type 2 (106 Key, DBCS Support):
|
Japanese Keyboard |
94X1110 |
|
Keyboard Cable |
94X1147 |
Space-Saving Keyboards (84/85):
|
Canadian French |
1396046 |
|
Spanish/Latin |
1396047 |
|
U.S. English |
1393290 |
|
Cable Assembly, External |
1393082 |
Tools and Miscellaneous:
|
Audio Wrap Cable |
66G5180 |
|
Ethernet BNC T-Connector |
84F8207 |
|
Ethernet BNC 50-ohm Terminator |
85F0037 |
|
Grounding Wire Set |
38F4684 |
|
Keyboard key Cap Removal Tool |
6110464 |
|
PC Test card |
33G4703 |
|
Screwdriver Kit |
95F3958 |
|
SCSI Terminator |
92F0142 |
|
SCSI Terminator Kit |
92F0143 |
|
Wrap Plug Ethernet D-Shell |
85F0036 |
|
Wrap Plug, Tri-Connector |
72X8546 |
|
Wrap Plug (6157 Tape Attachment Adapter/A) |
4178459 |
|
Wrap Plug (Token-Ring Network Adapter/A) |
6165899 |
|
Plastic Envelope (For Wrap Plug) |
6138013 |

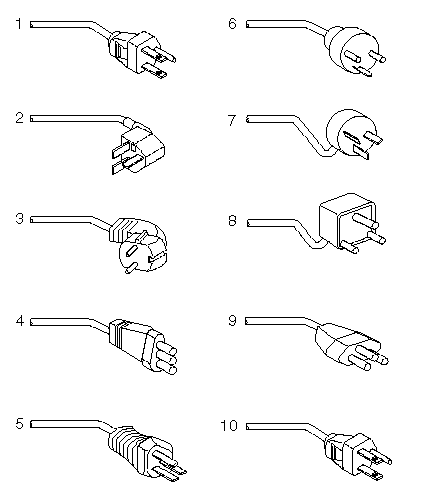

Display Power Cords:
|
1 |
Colombia, U.S., Venezuela |
6952300 |
|
Colombia, U.S., Venezuela |
62X1045 | |
|
2 |
Hong Kong, Singapore, U.K. |
14F0033 |
|
3 |
France, Germany, Spain |
13F9979 |
|
4 |
Italy, Chile |
14F0069 |
|
5 |
Australia, New Zealand, New Guinea, Papua |
13F9940 |
|
6 |
Denmark |
13F9997 |
|
7 |
Israel |
14F0087 |
|
8 |
Bangladesh, Pakistan, South Africa, Sri Lanka |
14F0015 |
|
9 |
Switzerland |
14F0051 |
|
10 |
Thailand |
1838574 |
|
Japan |
79F2755 |
Element Exchange Displays:
|
8503 12-Inch Monochrome Display | |
|
110/120 V ac |
68X3045 |
|
220/240 V ac (No. Hemisphere) |
68X3046 |
|
220/240 V ac (So. Hemisphere) |
72X7878 |
|
Tilt/Swivel Stand |
68X3061 |
|
85034 12-Inch Monochrome Display | |
|
110/120 or 220/240 V ac (Universal) |
44F9807 |
|
220/240 V ac (No. Hemisphere) |
44F9808 |
|
220/240 V ac (So. Hemisphere) |
44F9809 |
|
Tilt/Swivel Stand |
44F9820 |
|
8506 17-Inch Monochrome Display (with Tilt/Swivel Stand) | |
|
110/125 V ac (US/Canada) |
39F8087 |
|
110/125 or 200/240 V ac (No. Hemisphere) |
39F8091 |
|
110/125 or 220/240 V ac (So. Hemisphere) |
39F8089 |
|
8507 19-Inch Monochrome Display | |
|
110/120 or 220/240 V ac (Universal Model) |
6247808 |
|
110/125 or 200/240 V ac (No. Hemisphere) |
6247843 |
|
110/125 or 220/240 V ac (So. Hemisphere) |
6247842 |
|
8508 19-Inch Monochrome Display | |
|
110/125 V ac (US/Canada) |
6247883 |
|
110/125 or 200/240 V ac (No. Hemisphere) |
6247840 |
|
110/125 or 200/240 V ac (So. Hemisphere) |
39F8068 |
|
8512 14-Inch Color Display | |
|
110/220 V ac (US/Canada) |
61R8924 |
|
220/240 V ac (No. Hemisphere) |
61X8928 |
|
220/240 V ac (So. Hemisphere) |
61X8927 |
|
Tilt/Swivel Stand |
61X8925 |
|
8513 12-Inch Color Display: | |
|
110/120 V ac |
68X3088 |
|
220/240 V ac (No. Hemisphere) |
72X7870 |
|
220/240 V ac (So. Hemisphere) |
72X7877 |
|
Tilt/Swivel stand |
68X3061 |
|
8514 16-Inch display | |
|
110/120 V ac |
75X5945 |
|
220/240 V ac (No. Hemisphere) |
75X5946 |
|
220/240 V ac (So. Hemisphere) |
75X5947 |
|
Tilt/Swivel Stand |
75X5907 |
|
8515 14-Inch Color Display | |
|
90/137 V ac |
07G4759 |
|
220/240 V ac (No. Hemisphere) |
34G6628 |
|
220/240 V ac (Equatorial) |
07G4762 |
|
220/240 V ac (So. Hemisphere) |
07G4763 |
|
Tilt/Swivel stand |
38F3909 |
|
8516 Color Touch Display | |
|
110/120 V ac |
44F9759 |
|
220/240 V ac (No. Hemisphere) |
70F9129 |
|
220/240 V ac (So. Hemisphere) |
70F9111 |
|
