Service Hints & Tips |
Document ID: VLAR-42RRM5 |
External Half-High SCSI Storage Enclosure - Ground Pin settings for various Tape Drives
Applicable to: World-Wide
The following JPEG files show Jumper settings for Ground Pins. These are necessary when using any of the below mentioned drives in the Options by IBM External Half High SCSI Storage Enclosure.

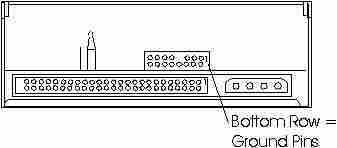

DDS-2 (4/10GB DAT)

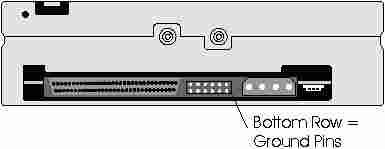

DDS-3 (10/20GB DAT)

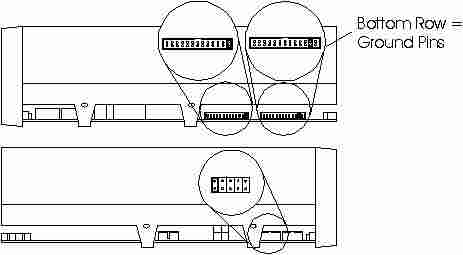

DLT7000 (35/70GB DLT)

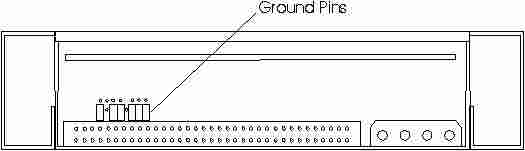

NS20 and TR4 (10/20GB NS & 4/8GB TR4)
Mammoth (20/40GB 8mm)
|
Search Keywords |
| |
|
Hint Category |
Jumper/Switch Settings | |
|
Date Created |
01-12-98 | |
|
Last Updated |
01-12-98 | |
|
Revision Date |
01-12-99 | |
|
Brand |
IBM Options | |
|
Product Family |
Rack/Storage Enclosures | |
|
Machine Type |
3510 | |
|
Model |
030; 020 | |
|
TypeModel |
| |
|
Retain Tip (if applicable) |
| |
|
