Parts Information

Document ID: GSMH-3GMJ6S

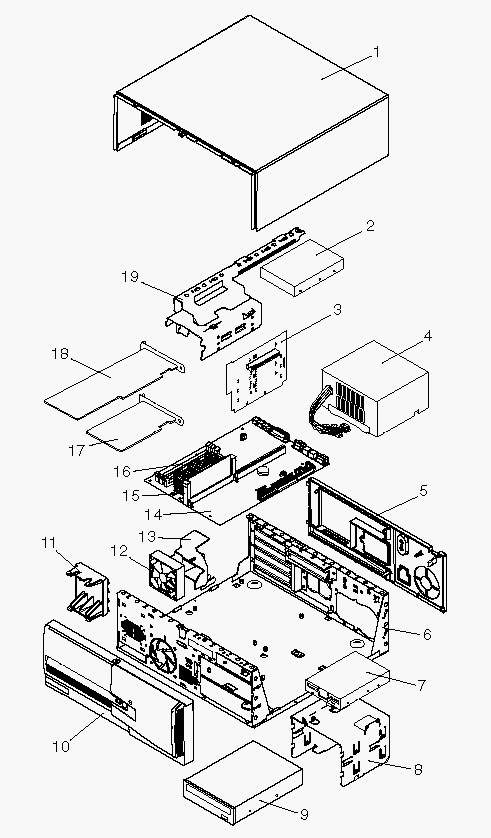

IBM PC300XL (Type 6588)/IBM IntelliStation M Pro (Type 6888) - Parts diagram/FRU listing

Applicable to: World-Wide

Type 6588/6888 - Parts Listing

Parts Listing

Index

System Unit (Type 6588, 6888)

Part Number

1

Top Cover (6588)
(6888)
Cover Latch (6588)
Cover Latch (6888)

75H7986
12J6023
06H1783
12J6029

2

2.5 GB EIDE Hard Disk Drive (6588)
4.2 GB EIDE Hard Disk Drive (6588)
4.3 GB SCSI Hard Disk Drive (6588, 6888)
SCSI Cable (6588, 6888)
EIDE Cable (6588, 6888)

07H1123
76H5820
76H4616
01K1458
06H6326

3

Riser Card (6588, 6888)

12J3018

4

Power Supply-200 W (6588, 6888)
Power Supply-200 W (Japan)

12J5109
12J5111

5

Rear Fascia (6588)
(6888)
Rear Panel I/O (6588, 6888)

01K1689
12J6028
06H9410

6

Base Frame Assembly (with labels) (6588, 6888)
Rear Panel D Shell (6588, 6888)
Serial Cable 9-pin (6588, 6888)
Power Switch and Cable (6588, 6888)
LED Cable Assembly, Dual-Power/Hard Disk (6588, 6888)
LED Cable Assembly, Hard Disk (6588, 6888)
LED Cable Assembly, Power (6588, 6888)
SCSI LED Cable (6588, 6888)
IR/Serial Cable (6588, 6888)
Security Switch and Cable Assembly (6588, 6888)
Keylock and Key (6588)
Keylock and Key (6888)
Bottom Cover (6888)
Pedestal (6888)

12J3040

12J3023
75H9218
60G2258
76H4463

93F2388

93F2389
75H9217
12J3025
06H1788

06H1776
12J6027
01K1652
12J3038

7

Diskette Drive, 3.5-Inch, 1.44 MB (6588)
(6888)
Diskette Drive Cable (6588, 6888)

93F2361
76H4091
06H6344

8

Bracket, 5.25-Inch (6588, 6888)

06H9408

9

CD-ROM (16X Max) (6588)
(6888)

76H6101
00K7892

10

Front Bezel Assembly
(6588)
(6888)
Blank Drive Bezel 5.25-Inch (6588)
Blank Drive Bezel 5.25-Inch (6888)
Blank Drive Bezel 3.5-Inch (6588)
Blank Drive Bezel (6588)
Blank Drive Bezel (6888)
Bezel, PCMCIA (6588)
Bezel, PCMCIA (6888)

12J3021
12J3039
06H5738
12J6025
06H5739
06H9411
01K1653
06H1784
12J6024

11

Card Guide (6588, 6888)

06H1779

12

Fan Assembly 80 mm (6588, 6888)

12J3020

13

Fan Duct (6588, 6888)

12J3022

14

System Board (no processor, memory) (6588, 6888)
Cable, Audio - System Board to CD-ROM (6588, 6888)
Lithium Battery (6588, 6888)

12J3017

75H9219

33F8354

15

Processor, 233 MHz - 512 KB Cache (6588)
Processor, 266 MHz - 512 KB Cache (6588, 6888)
Processor Retention Kit (6588, 6888)
Kit includes: Retainer Bracket, System Board Plate, 6-screws,Washers.

12J3019
12J3024

12J6030

16

Memory
32 MB DIMM, NP EDO (6588)
32 MB DIMM, ECC (6888)
64 MB DIMM, ECC (6888)

42H2797
42H2801
42H2829

17

SCSI Adapter (6588, 6888)
4 MB Video Adapter - Matrox (6588, 6888)

12J3094
75H9227

18

Intergraph 3D Graphics Adapter (6888)

75H9225

19

Bracket, Hard File (6588, 6888)
EMC Shield (6588, 6888)
Foot (6588, 6888)
Misc. Screw Kit (6588, 6888)
Jumper Kit (6588, 6888)

06H9409
06H1782
06H1773
93F0041
93F0067
