TP 310,315 - Switch Locations
Applicable to: World-Wide
Switch Locations:
There are two switches on the system board:
CPU speed:
Keyboard select, password enable/disable and BIOS screen select and another switch on the DC-DC converter.
CPU voltage:

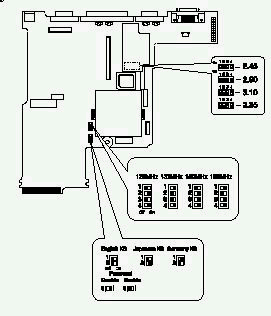

Refer to the figure and tables below for switch settings.
CPU Voltage (S1) Settings:
|
CPU Voltage |
2.35V |
2.45V |
2.9V |
3.1V*** Default setting* |
|
Switch 1 |
Off |
Off |
Off |
Off |
|
Switch 2 |
Off |
On |
Off |
Off |
|
Switch 3 |
On |
Off |
Off |
Off |
|
Switch 4 |
Off |
Off |
Off |
On |
CPU Speed (SW3) Settings:
|
CPU Speed |
120MHz |
133MHz*** Default setting* |
150MHz |
|
Switch 1 |
Off |
On |
Off |
|
Switch 2 |
On |
Off |
On |
|
Switch 3 |
Off |
Off |
On |
|
Switch 4 |
On |
On |
On |
Keyboard Language (SW2, Switch 1 and 2) Settings:
|
Keyboard Language |
European |
U.S. |
Japanese |
|
Switch 1 |
On |
Off |
Off |
|
Switch 2 |
Off |
Off |
On |
Password (SW2, Switch 3) Settings:
|
Password |
ON |
OFF |
|
Switch 3 |
Bypass |
Check |
Reserved switch (SW2, Switch 4):
|
Reserved |
ON |
OFF |
|
Switch 4 |
-- |
-- |
|
