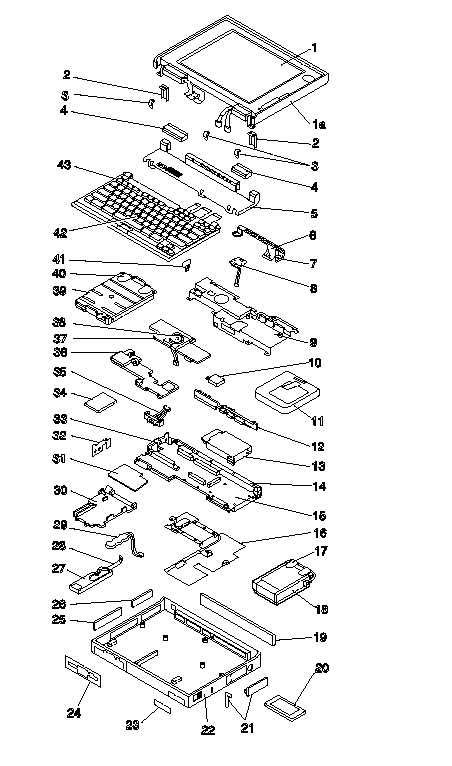

TP 755CE/CSE/CV/CX - FRU parts listing
Applicable to: World-Wide
Parts Listing:
System Unit (755CE/755CSE/755CV/755CX):
|
Index |
Component |
FRU PN |
|
1 |
LCD Assembly (755CE) |
85G1489 |
|
LCD Assembly (755CSE) |
85G1490 | |
|
LCD Assembly, (755CX TFT-VGA) |
85G1489 | |
|
LCD Assembly, (755CX TFT-SVGA) |
85G8546 | |
|
LCD Assembly, Front (755CV) |
85G1633 | |
|
1a |
LCD Assembly, Rear cover (755CV) |
85G1630 |
|
2 |
Hinge Bracket, Right, Left |
85G1507 |
|
3 |
Screw Rubber Lid |
85G1509 |
|
4 |
Hinge, Lid, Right/Left |
84G6555 |
|
5 |
Top Cover (755CE) |
85G1491 |
|
Top Cover (755CSE) |
85G1492 | |
|
Top Cover (755CV) |
85G7472 | |
|
Top Cover (755CX) |
85G8547 | |
|
6 |
LED Assembly |
84G6547 |
|
7 |
Stand-off, LED |
84G6554 |
|
8 |
Backup Battery |
85G1501 |
|
9 |
Shield Case, Upper |
85G1496 |
|
10 |
IR Assembly, rear |
85G1563 |
|
10 |
IR Lens, rear |
84G6550 64 |
|
11 |
Battery Pack (Ni-MH) |
85G1510 |
|
Battery Pack (Li-ion) |
85G8554 | |
|
12 |
Interposer Card |
85G1503 |
|
13 |
PCMCIA Slot Assembly |
85G1062 |
|
14 |
Lower Shield |
85G1497 |
|
15 |
System Board (755CE, 755CSE, 755CV) |
85G1141 |
|
System Board (755CX) |
85G8548 | |
|
16 |
Processor Card (25/75 MHz) |
85G1494 |
|
Processor Card (33/100 MHz) |
85G1495 | |
|
Processor Card (755CX) |
85G8550 | |
|
17 |
HDD Removal Strap |
66G5122 |
|
18 |
340MB Hard Disk Drive |
66G5068 |
|
540MB Hard Disk Drive |
84G4319 | |
|
810MB Hard Disk Drive |
85G0961 | |
|
19 |
Rear Connector Cover |
66G5050 |
|
20 |
PCMCIA Device (See options) | |
|
21 |
PCMCIA Cover |
85G1511 |
|
22 |
Base Cover Assembly (755CE) |
85G1486 |
|
For Japan |
85G1488 | |
|
Base Cover Assembly (755CSE) |
85G1026 | |
|
Base Cover Assembly (755CV) |
85G1105 | |
|
For Japan |
85G1106 | |
|
Base Cover Assembly (755CX) |
85G8545 | |
|
For Japan |
85G8570 | |
|
23 |
Name Label |
66G9228 |
|
24 |
Bezel, Diskette Drive |
85G1036 |
|
Bezel, Blank |
85G1891 | |
|
25 |
Cover, Option Bay |
85G1037 |
|
26 |
AV Door |
84G6551 |
|
27 |
IR Lens, Front |
84G6548 |
|
28 |
IR Assembly, Front |
84G6549 |
|
29 |
Standby Battery |
85G1039 |
|
30 |
Base Plate |
84G6563 |
|
31 |
Memory Card (755CE, 755CSE, 755CV) |
84G6561 |
|
Memory Card (755CX) |
85G8565 | |
|
32 |
AV Panel |
84G6552 |
|
33 |
Power Switch Button |
84G6553 |
|
34 |
IC DRAM Card (See options) | |
|
35 |
Battery Terminal (755CE, 755CSE) |
84G6556 |
|
Battery Terminal (755CV, 755CX) |
85G8568 | |
|
36 |
DSP Card Assembly |
85G1140 |
|
37 |
DC/DC Card (755CE, 755CSE) |
85G1500 |
|
DC/DC Card (755CV, 755CX, 755CDV) |
85G8551 | |
|
38 |
Speaker |
84G6557 |
|
39 |
Diskette Drive (4-mode) |
66G5060 |
|
Diskette Drive (3-mode) |
84G2269 | |
|
40 |
Diskette Drive Removal Strap |
66G5123 |
|
41 |
Keyboard Security Plate |
85G1508 |
|
42 |
TrackPoint III Cap | |
|
43 |
Keyboard Assembly (See Keyboards) |
See below |
|
Connection Cable, Microphone |
84G6559 | |
|
Modem Connector Assembly, U.S. |
85G1504 | |
|
Modem Connector Assembly, EMEA. |
85G1505 | |
|
Modem Connector Assembly, blank. |
84G6564 | |
|
Wall Plug, Modem |
85G2367 | |
|
PCMCIA Cartridge |
84G1303 | |
|
PCMCIA RF Cartridge |
84G1304 | |
|
Head Phone |
85G1529 | |
|
Interface Cable, System - Keyboard |
84G2531 | |
|
Interface Cable, Keyboard - Keypad |
84G2532 | |
|
Cable, Mini-DIN to Mini-DIN |
84G6474 | |
|
AC Adapter (35W, 3-pin) |
85G4952 | |
|
For Japan (2-pin) |
85G6669 | |
|
DC Plug (4 pin, 2-pin) |
85G6664 | |
|
EMI Spring Plate |
85G1066 | |
|
Foot (right, left) |
84G4326 | |
|
Extension DC Cable (755CV) |
84G7466 | |
|
DC Adapter Cable (755CV) |
85G7466 | |
|
Strap (755CV) |
85G1104 | |
|
Computer Stand (755CV) |
85G1635 | |
|
Remote Control (755CV) MindPath Technologies Inc. |
Keyboard:
|
Arabic |
84G6508 |
|
Belgian |
84G6506 |
|
Canadian French |
84G6514 |
|
Danish |
84G6505 |
|
Dutch |
84G6503 |
|
French |
84G6499 |
|
German (Black) |
84G6497 |
|
Greek |
84G6512 |
|
Hebrew |
84G6509 |
|
Italian |
84G6501 |
|
Japanese |
84G6515 |
|
Latin American |
84G6513 |
|
Norwegian |
84G6507 |
|
Portuguese |
84G6510 |
|
Spanish |
84G6504 |
|
Swedish |
84G6502 |
|
Swiss/French |
84G6500 |
|
Swiss/German |
84G6498 |
|
Turkish |
84G6511 |
|
U.K. English |
84G6496 |
|
U.S. English |
84G6495 |
|
