Aptiva - 2158/2163/2164 Removals and replacements

10.741 bytes

Service Hints & Tips

Document ID: DETR-42RP88

Aptiva - 2158/2163/2164 Removals and replacements - Memory

Applicable to: World-Wide

Memory(DIMM)

CAUTION: Memory modules are sensitive to static discharge.

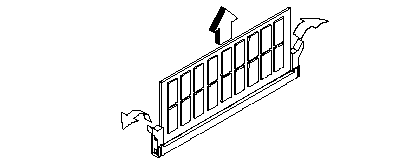

Press the levers on both sides of the socket down and outwards.
Lift the DIMM to remove.

ATTENTION: Place your forefingers on the top of the DIMM before you press the holding clips to gently disengage the DIMM from the socket.

Search Keywords

Hint Category

Memory, Hardware Installation/Configuration

Date Created

01-12-98

Last Updated

24-02-99

Revision Date

24-02-2000

Brand

IBM Aptiva

Product Family

Aptiva

Machine Type

2158, 2163, 2164

Model

all

TypeModel

Retain Tip (if applicable)

Reverse Doclinks
and Admin Purposes

	Search Keywords
	Hint Category	Memory, Hardware Installation/Configuration
	Date Created	01-12-98
	Last Updated	24-02-99
	Revision Date	24-02-2000
	Brand	IBM Aptiva
	Product Family	Aptiva
	Machine Type	2158, 2163, 2164
	Model	all
