Netfinity 5000 - Keyboard and Mouse Connectors
Applicable to: World-Wide
Keyboard and Mouse Connectors
Your server provides one keyboard port and one auxiliary-device port. An auxiliary device can be a mouse or other pointing device.

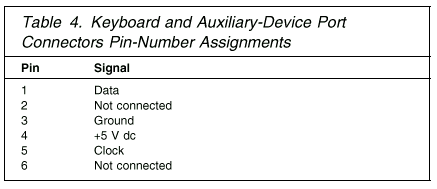

Table 4 shows the pin-number assignments for the keyboard and auxiliary-device port connectors.
|
