TP 365E/ED - Parts listing

63.586 bytes

Parts Information

Document ID: RMIE-39UD5S

TP 365E/ED - Parts listing

Applicable to: World-Wide

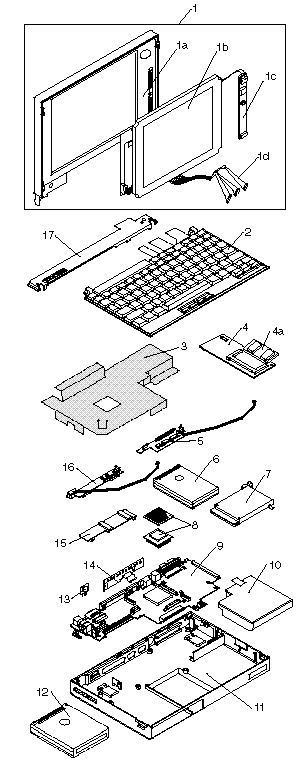

System Unit - ThinkPad 365E, 365ED Only

Important
The following FRUs are for ThinkPad 365E and 365ED models only

Index

FRU

1

LCD Assembly, 10.4-Inch DSTN (365E Only)
(LCD Cover Kit, Panel, Inverter, Cable)
(U.S.-2625, model R6A, W9A)

75H7616

1

LCD Assembly, 10.4-Inch DSTN (365ED Only)
(LCD Cover Kit, Panel, Inverter, Cable)
(U.S.-2625, model R6G, W9G)

75H7617

1a

LCD Cover Kit, 10.4-Inch DSTN (365E Only)
(U.S.-2625, model R6A, W9A)

42H4047

1a

LCD Cover Kit, 10.4-Inch DSTN (365ED Only)
(U.S.-2625, model R6G, W9G)

75H7578

1b

LCD Panel, 10.4-Inch DSTN
(U.S.-2625, model R6A, R6G, W9A, W9G)

41H7463

1c

Inverter Board, 10.4-Inch DSTN
(U.S.-2625, model R6A, R6G, W9A, W9G)

42H4049

1d

Cable Assembly, 10.4-Inch DSTN
(U.S.-2625, model R6A, R6G, W9A, W9G)

42H4051

1

LCD Assembly, 10.4-Inch TFT (365E Only)
(LCD Cover Kit, Panel, Inverter, Cable)

75H7618

1

LCD Assembly, 10.4-Inch TFT (365ED Only)
(LCD Cover Kit, Panel, Inverter, Cable)

75H7619

1a

LCD Cover Kit, 10.4-Inch TFT (365E Only)

42H4053

1a

LCD Cover Kit, 10.4-Inch TFT (365ED Only)

75H7579

1b

LCD Panel, 10.4-Inch TFT

41H7464

1c

Inverter Board, 10.4-Inch TFT

42H4055

1d

Cable Assembly, 10.4-Inch TFT

42H4057

2

See Keyboards (below)

3

Mylar Cover

42H4021

4

8MB Memory Board

88G1262

4

16MB Memory Board (Special Bid only)

76H2997

Memory Board Insulated Bracket(10)

75H7624

4a

4MB RAM Card (SO-DIMM) (Option)

92G7290

4a

8MB RAM Card (SO-DIMM) (Option)

88G1262

4a

16MB RAM Card (SO-DIMM) (Option)

92G7296

5

Keyboard Card

75H7536

6

Hard Disk Drive

540MB Hard Disk Drive
(U.S.-2625, model R6A, R6G, W9A, W9G)

02K0486

720MB Hard Disk Drive

85G8371

810MB Hard Disk Drive

07H0392

1.08GB Hard Disk Drive

39H2221

7

PCMCIA Socket Assembly

75H7622

8

Processor, IBM 5x86C 100MHz

40H4012

9

System Board, 1MB VRAM

76H2982

9

System Board, 1MB VRAM (Japan Only)

76H2982

10

Battery Pack

41H7438

11

Lower Cover Assembly

76H3123

Lower Cover Rubber Feet (2)

75H7609

12

DASD Devices

Internal Diskette Drive Assembly
(U.S.-2625, model R6A, W9A)

41H7444

External Diskette Drive with Cable
(U.S.-2625, model R6G, W9G)

75H7572

External Diskette Drive 3-Mode (Japan Only)

10H4055

External Diskette Drive Cable (Japan Only)

74H0219

CD-ROM (4X) Drive
(U.S.-2625, model R6G, W9G)

42H4042

13

Volume Control Card

41H7434

14

LED/IR Board

41H7443

15

DC/DC Board

42H4037

16

Sound Card (16-Bit)
(U.S.-2625, model R6G, W9G)

42H4035

16

Sound Card (No Audio)
(U.S.-2625, model R6A, W9A)

42H4033

17

Upper Cover (with Screws, Gasket)

75H7573

AC Adapter (35W Universal)

85G6698

AC Adapter (35W Japan Only)

85G6700

AC Power Cord (6-Inch - U.S.)

25H2207

Game Port Cable

75H7576

Base Assembly (With Parts Kit)
- Upper Cover Bracket with Speaker
- Power Switch Knob, Power Bracket,
- Support Bracket, Misc. Rubber Parts
- TrackPoint Caps (2), IR Lens

41H7432

Plastic Door/Bezel Package
- PCMCIA, I/O, Modem, CD-ROM, FDD
- Replicator, Misc. Rubber Parts

75H7574

Flat Plastic Cable Kit
- DSTN, TFT, CD-ROM, Internal FDD

75H7575

Replicator Base Assembly

41H7457

Replicator Cable Cover

41H7458

Mini-Replicator Assembly

75H7528

Miscellaneous Parts/Screws Kit
- CD-ROM Removal Pin, Washers, Hex Nuts,
- Misc. Rubber Parts, Various Mylar Pieces,
- Keyboard Knobs, Power Knob, Rubber Pads
- Diskette Drive Brackets, Hard Disk Brackets
- Memory Board Bracket, Power Bracket
- Screw M2.5x3.5 (4), Screw M2x4 (6),
- Screw M3x4 (4), Screw M3x6 (4)
- Screw M2x15 (2), Screw M2x7 (4)
- Screw M2x5 pan (16), Screw M3x6 pan (4)
- Screw M3x6 binding (4)

41H7456

TrackPoint Cap Kit

Click Here

Keyboard (Index Number 2)

Arabic

42H3936

Belgian

42H3937

Canadian (French)

42H3938

Danish

42H3939

Dutch

42H3940

Swedish

42H3941

French

42H3942

German

42H3943

Greek

42H3944

Hebrew

42H3945

Italian

42H3946

Japanese

42H3947

Latin American, Spanish

42H3948

Norwegian

42H3949

Portuguese/Brazil

42H3950

Russian

42H3956

Spanish

42H3951

Swiss French

42H3953

Swiss German

42H3952

Swiss French/German Combination

75H7562

Turkish

42H3954

United Kingdom

42H3955

United States

41H9789

Search Keywords

Document Category

Hardware Maintenance Information

Date Created

23-07-96

Last Updated

03-03-99

Revision Date

03-03-2000

Brand

IBM ThinkPad

Product Family

ThinkPad 365E/ED

Machine Type

2625

Model

Various

TypeModel

Retain Tip (if applicable)
