9306 Rack Enclosure - System Parts Listing (9306-200)

Applicable to: World-Wide

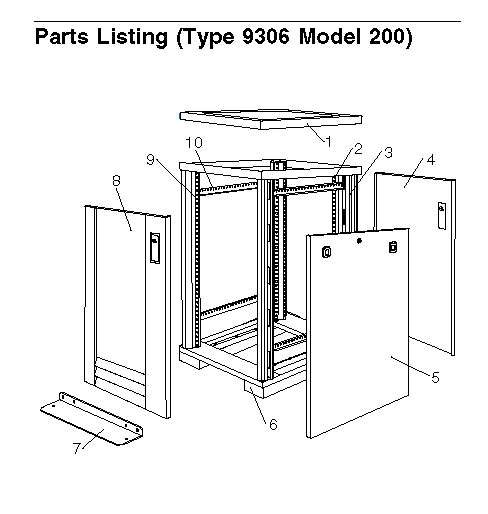

Index	Rack Enclosure (Type 9306 Model 200)	FRU
1	Top Cover including cover standoffs and screws	28L0548
2	Rear EIA Rail (1) Includes mounting hardware	28L0547
3	Rack Frame Caster (1) Leveler (1)	28L0550 12J4466 76H4960
4	Rear Door Assembly Including latch and lock	28L0545
5	Side Panel Assembly with Latches and Lock Side Panel Latches Side Panel Lock with Keys	28L0549 12J4468 76H4965
6	Caster Extension Plinth (1)	12J4482
7	Stabilizer	12J4485
8	Front Door Assembly Including latch and lock	28L0544
9	Front EIA Rail (1) Includes mounting hardware	28L0546
10	Side Brace (1) Front/Rear Door Hinge with Pin (1) Front/Rear Door Latch with Lock and Keys (1) Front/Rear Door Striker Plate (1) Includes mounting hardware Front/Rear Door Hinge Pin (1) Grommet, Cable Exit Label, EIA Unit Numbers	12J4477 76H4966 76H4967 12J4465 12J4469 28L0553 28L0551
	Miscellaneous Parts Kit - Includes: Caged Nut, M6 (6) Screw, M6 Hex Head (6) Screw, M6 Socket (5) Washer, 10/32 flat (6) Hex Nut, M6 (5) Screw, M6X12 Button Head (5)	76H4950

Rack Enclosure (Type 9306 Model 200) Options	FRU
Monitor Housing	76H4947
Filler Panels: 1U, 3U, and 5U	12J4473
Keyboard Tray	76H4958
Keyboard Tray II	28L0562
Keyboard Tray II filler block	28L0567
Keyboard Slides (set) with Hardware	76H4961
Fixed Shelf with Hardware	76H4963
Single Slide Shelf	76H3628
C13 - C14 Power Cable	07H0075
C19 - C14 Power Cable	76H4964
C13 - NEMA 5-15P Power Cable	76H4962
C19 - NEMA 5-15P Power Cable	12J4479
Video, Mouse, Keyboard Power Cable (12 feet)	07H0073
Video, Mouse, Keyboard Power Cable (25 feet)	12J4484
Mouse Extension Cable	07H0069
Keyboard Extension Cable	07H0067
Concentrator (4 port) with Hardware	28L0543
Concentrator (8 port) with Hardware	76H4948
Low Voltage Power Distribution Unit - 8 AC sockets; With Hardware	12J4472
208 V Power Distribution Unit - 10 AC sockets; With Hardware	12J4483
250 V Slow Blow Fuse	0303549
