Aptiva - 2142 System unit (interior) FRU part number list

50.801 bytes

Parts Information

Document ID: JWOE-3KXPLK

Aptiva - 2142 System unit (interior) FRU part number list

Applicable to: China, Hong Kong, Japan, Australia, Canada, United States, Denmark, Finland, France, Germany, Italy, Netherlands, Norway, Spain, Sweden, United Kingdom

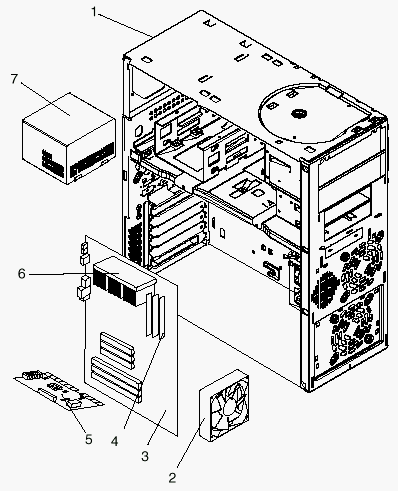

Assembly 4: Machine Type 2142 System Unit -Interior (SL-A)

Asm- Index

FRU Part Number

Units

Descritption

4-1

Machine Type 2142

Note: See Appendix B,
"Model/Monitor Configurations and
FRU Part Numbers" on page B-1 of the HMM for model specifications. The HMM can be found by clicking here -

-1

R

Chassis Assembly

-NS

76H6367

1

Amplifier Tier 1 (Models S31,SC1/D1/E1)

-NS

12J5840

1

Amplifier Tier 2

-NS

76H6351

1

Cable, Power Switch to System Board

-NS

76H6353

1

Cable, Amplifier Signal to System Board

-NS

76H6355

1

Cable, Amplifier Audio to System Board

-NS

07H1496

1

Cable, Host Card to System Board
Audio

-NS

12J5919

1

Cable, Host Card to System Board
LED

-NS

76H6347

1

Cable, Host Card to System Board
Signal

-2

12J6487

1

Fan Assembly

All system board FRUs are shipped without processor or DIMMs. When replacing a system board, remove all FRUs from the original system board and install them on the new system board.

-3

93H5148

1

System Board - Type A-1

-3

93H5225

1

System Board - Type A-2

-3

93H7524

1

System Board - Type A-2 with TV OUT 'J13'

-NS

93F0063

1

Lithium Battery

-NS

33F8354

1

Lithium Battery (EMEA)

-NS

93F0067

1

Jumper Kit

-NS

12J6296

1

Screw Kit

-4

01K1104

1

DIMM, 16 MB SDRAM

-4

01K1105

1

DIMM, 32 MB SDRAM

-5

12J5962

1

Host Card

-6

42H4865

1

P55C-166 MHz Processor

-6

42H4866

1

P55C-200 MHz Processor

-6

12J6236

1

P55C-233 MHz Processor

-NS

76H3658

1

Voltage Regulator for P55C Processor

-6

01K2063

1

Pentium II-233 MHz Processor

-6

01K2064

1

Pentium II-266 MHz Processor

-7

75H8991

1

Power Supply-200 Watt

-7

76H4873

1

Power Supply-200 Watt-Japan
