Parts Information

Document ID: RMIE-38JBKS

TP 760E/ED - FRU parts listing

Applicable to: World-Wide

Parts Listing :

Model 760E/ED CD UPGRADEABLE TYPE

There are two models each for 760E (CD upgradeable type) and 760ED.


For a list of the 760E slim models, click here.

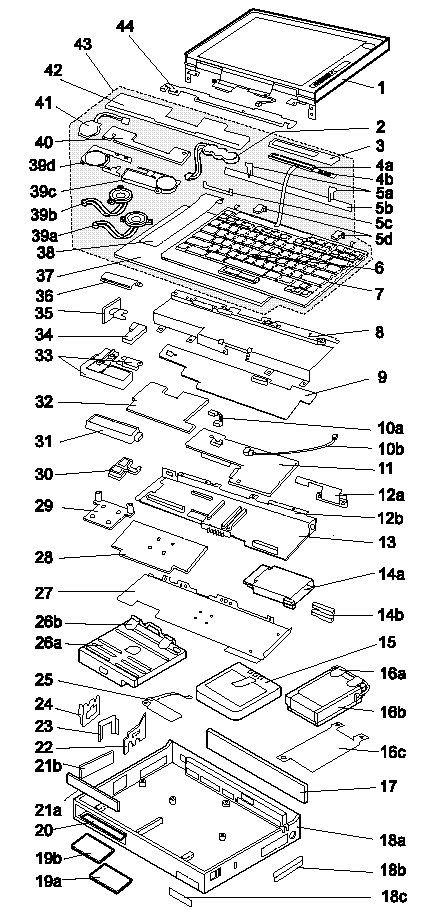

Index

(760E CD upgradeable type or 760ED)

FRU
PN

1

LCD Assembly
12.1 SVGA TFT thick model

29H9226

LCD Assembly
12.1 SVGA TFT slim model

82H8496

LCD Assembly
12.1 XGA TFT slim model

46H5735

2

Standby Battery

29H9497

3

LCD Indicator Assembly Cover

69H8403

4a

LCD Indicator Assembly

29H9220

4b

Volume Knob

69H8404

5a

See Keyboard Misc. parts

5b

Keyboard Foot

39H7038

5c

Keyboard FPC Bracket

39H7035

5d

See Keyboard Misc. parts

6

TrackPoint III Cap

click here

7

Keyboard (See Keyboard Section)

see below

8

Upper Shield Case

29H9213

9

Video Card(760E thick model)

39H6228

(760ED thick model)

39H6227

(760ED XGA slim model)

82H8880

(760E XGA slim model)

82H8881

(760E SVGA slim model)

12J1569

10a

Volume Connection Cable

29H9211

Volume Connection Cable
(760E/760ED XGA slim model)

82H8965

10b

Mic Connection Cable

29H9210

11

DSP Card

29H9205

12a

FDD Connector Cable

29H9203

12b

Rear Shield Case

29H9201

13

System Board (760E thick model)
(U.S.-9546, model U3B)

11J8234

System Board (760ED thick model)
(U.S.-9546, model U3A, U3L)

05K3172

System Board
(760E/760ED XGA slim model)
(U.S.-9546, model U9A, U9B)

05K3174

System Board
(760E/760ED SVGA slim model)

05K3172

14a

PC Card Slot

46H6031

14b

Eject Button

46H6028

15

Battery Pack (Li-ion)

29H9232

16a

HDD Removable Strap

29H9236

16b

Hard Disk Drive (810 MB)

29H9366

Hard Disk Drive (1.08 GB)

29H9367

Hard Disk Drive (1.2 GB)
(U.S.-9546, model U3A, U3B, U3L)

29H9228

Hard Disk Drive (1.4 GB)

82H8884

Hard Disk Drive (2.1 GB)

82H8489

16c

EMI Sheet

39H7031

17

Rear Connector Door
(760E CD Upgradable Type or 760ED)

29H9186

18a

Base Cover (760E thick type)

46H6043

For Japan

46H6044

Base Cover (760ED)

39H6248

For Japan

39H6233

18b

PC Card Door

29H9238

18c

Name Label

66G9228

18d

Game Port Bracket
(9546, model U9B only)

82H8895

18e

Thermal Rubber Sheet

69H8429

19a

DIMM Cover

69H8422

19b

DIMM Adapter Card (8 MB)
(U.S.-9546, model U3A, U9A, U9B)

83H7126

DIMM Adapter Card (Blank)
(U.S.-9546, model U3B, U3L)

83H7124

20

Lower Spacer

29H9194

21a

FDD Blank Bezel

29H9289

FDD Bezel

83H5431

21b

Option Cover

29H9193

22

AV Cover

29H9190

23

Modem Cover Lock

39H7027

24

Modem Cover

39H7029

Blank Cover for EMEA

29H9188

25

Front IR Assembly

29H9215

26a

FDD Drive (3 mode)
(U.S.-9546, model U3A, U3B, U3L, U9A, U9B)

29H9230

For Japan (4 mode)
In the U.S., either of the CD-ROM 4X drives below may be used for 9546, model U3A, U3B, U3L) Order the FRU number of the drive being replaced.

29H9372

CD-ROM Drive (4x)
(either 4x drive can be used)

29H9231

CD-ROM Drive (4x)
(either 4x drive can be used)

12J2186

CD-ROM Drive (6x) slim model
(U.S.-9546, model U9A)

83H5428

26b

Diskette Drive Removable Strap

29H9237

27

Lower Shield

29H9202

28

CPU Card (120 MHz, Pentium thick model) (U.S.-9546, model U3B, U3L)

11J9672

CPU Card (133 MHz, Pentium)
(U.S.-9546, model U3A, U9A)

82H8897

CPU Card (150 MHz, Pentium slim model)
(U.S.-9546, model U9B)

82H8877

29

Heat Sink

39H7006

30

See Misc. Parts

31

Internal DAA Assembly

12J1571

32

DC/DC Card
(U.S.-9546, model U3A, U3B, U3L, U9A)

83H5375

DC/DC Card for CPU card 150MHz Pentium (U.S.-9546, model U9B)

83H5378

33

See Misc. Parts

34

Power Switch Actuator

29H9209

35

Power Switch Button

29H9192

36

Rear IR Assembly

29H9214

37

Keyboard Base

29H9218

38

Keyboard Cable

29H9222

39a

Speaker (right)

29H9225

39b

Speaker (left)

39H6983

39c

Speaker Holder (right)

39H7033

39d

Speaker Holder (left)

39H7034

40

Keyboard Card

29H9221

41

Backup Battery

29H9506

42

Palm Rest

29H9219

For Japan

39H7032

43

Keyboard Unit See Keyboard Unit Section)

44

Top Cover

29H9184

AC Adapter (35W, U.S./Canada/LA/Japan)

85G6705

AC Adapter for EMEA/AP

12J1448

AC Adapter for EMEA/AP slim 3-prong

85G6735

Keyboard Misc. Parts

39H7105

Misc. Parts (760E thick type)
(Includes the following:)
Modem Holder
Modem Lever
Rear IR Lens
S-Video Bracket
Video Bracket

46H5367

Misc. Parts (760ED)
(Includes the following:)
Modem Holder
Modem Lever
Rear IR Lens
S-Video Bracket
Video Bracket

29H9235


Keyboard

FRU PN

Arabic

29H9076

Belgian

29H9074

Canadian French

29H9082

Danish

29H9073

Dutch

29H9071

French

29H9067

German

29H9065

Greek

29H9080

Hebrew

29H9077

Italian

29H9069

Japanese

29H9083

New World Spanish

29H9081

Norwegian

29H9075

Portuguese

29H9078

Russian

29H9084

Spanish

29H9072

Swedish / Finnish

29H9070

Swiss

46H5989

Turkish

29H9079

U.K. English

29H9064

U.S. English

29H9063

Keyboard Unit

Arabic

29H9408

Belgian

29H9406

Canadian French

29H9414

Danish

29H9405

Dutch

29H9403

French

29H9399

German

29H9397

Greek

29H9412

Hebrew

29H9409

Italian

29H9401

Japanese

29H9415

New World Spanish

29H9413

Norwegian

29H9407

Portuguese

29H9410

Russian

29H9416

Spanish

29H9404

Swedish / Finnish

29H9402

Swiss

46H5990

Turkish

29H9411

U.K. English

29H9396

U.S. English

29H9395
