Aptiva - 2134/2176 Diskette, Hard Disk Drives and Zip drive service parts

22.379 bytes

Parts Information

Document ID: DETR-437RSL

Aptiva - 2134/2176 Diskette, Hard Disk Drives and Zip drive service parts

Applicable to: World-Wide

Asm - Index

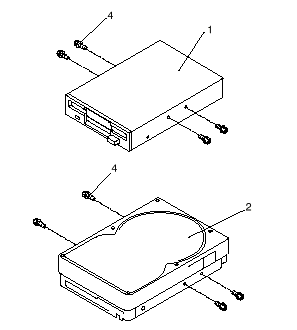

Part Number

Units

Description

5-1

93F2361

1

3.5-in. 1.44 MB Diskette Drive

-2

42H1816

1

850 MB Hard Disk Drive

-2

07H0383

1

1.2 GB Hard Disk Drive

-2

06H9064

1

1.6 GB Hard Disk Drive

-2

75H7498

1

2.0 GB Hard Disk Drive

-2

07H1123

1

2.5 GB Hard Disk Drive

-2

75H8976

1

3.2 GB Hard Disk Drive

Note: When referring to hard-disk-drive capacity, MB means 1 000 000 bytes; total user-accessible capacity may vary depending on operating environment.

When referring to hard-disk-drive capacity, GB means 1 000 000 000 bytes; total user-accessible capacity may vary depending
on operating environment

-NS

06H5743

1

Bracket, Hard Disk/CD-ROM
(Machine Type 2134 Only)

Note: See Appendix B, "Model/Monitor Configurations and FRU Part Numbers" in topic B.0 of the HMM for model specifications.

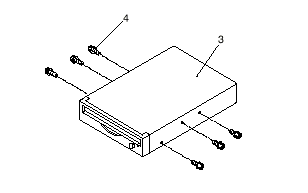

-3

76H3226

1

Internal Zip Drive, 100 MB

Note: Aptiva owners who received a separately
boxed external Zip drive must contact the Zip drive manufacturer for service and parts.

-4

93F0041

1

Packet (Mounting Screws)

Search Keywords

Document Category

Service Parts

Date Created

15-12-98

Last Updated

15-03-99

Revision Date

15-03-2000

Brand

IBM Aptiva

Product Family

Aptiva

Machine Type

2134, 2176

Model

all

TypeModel

Retain Tip (if applicable)

Reverse Doclinks
and Admin Purposes

Asm - Index	Part Number	Units	Description
5-1	93F2361	1	3.5-in. 1.44 MB Diskette Drive
-2	42H1816	1	850 MB Hard Disk Drive
-2	07H0383	1	1.2 GB Hard Disk Drive
-2	06H9064	1	1.6 GB Hard Disk Drive
-2	75H7498	1	2.0 GB Hard Disk Drive
-2	07H1123	1	2.5 GB Hard Disk Drive
-2	75H8976	1	3.2 GB Hard Disk Drive
			Note: When referring to hard-disk-drive capacity, MB means 1 000 000 bytes; total user-accessible capacity may vary depending on operating environment. When referring to hard-disk-drive capacity, GB means 1 000 000 000 bytes; total user-accessible capacity may vary depending on operating environment

-NS	06H5743	1	Bracket, Hard Disk/CD-ROM (Machine Type 2134 Only)

			Note: See Appendix B, "Model/Monitor Configurations and FRU Part Numbers" in topic B.0 of the HMM for model specifications.

-3	76H3226	1	Internal Zip Drive, 100 MB

			Note: Aptiva owners who received a separately boxed external Zip drive must contact the Zip drive manufacturer for service and parts.

-4	93F0041	1	Packet (Mounting Screws)
