Parts Information |
Document ID: DETR-44GLQG |

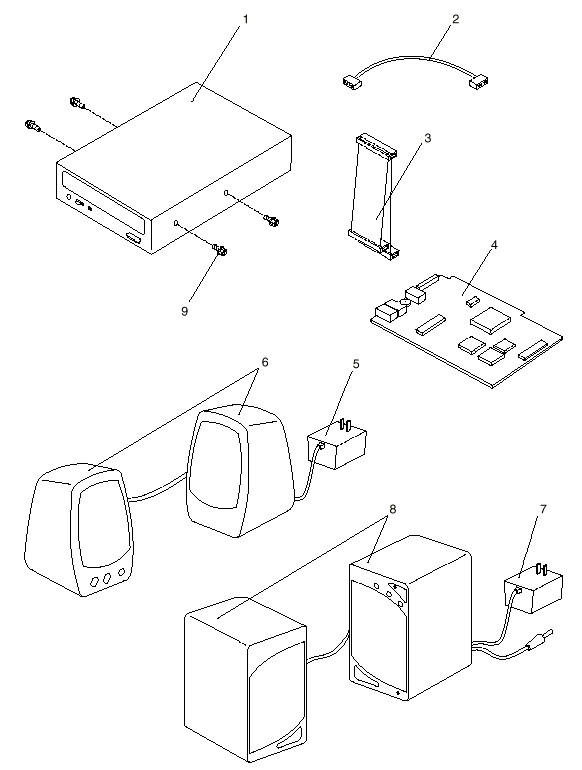

Aptiva - 2144-S15 parts - CD-ROM and sound cards
Applicable to: Canada, United States
|
Asm. Index |
Part Number |
Units |
Description |
|
4-1 |
06H7654 |
1 |
5.25-in. CD-ROM Drive 4X (IDE) |
|
-2 |
10H2924 |
1 |
CD-ROM Drive Audio Cable |
|
-3 |
93F2394 |
1 |
CD-ROM/Hard Disk Drive Ribbon |
|
-4 |
10H2826 |
1 |
Sound Adapter Card Level 3 |
|
-5 |
10H2833 |
1 |
Speaker Power Supply (U.S. and |
|
-6 |
74G0311 |
2 |
2 Speakers (Cables included) |
|
-7 |
Not used with S15, 2R3 | ||
|
-8 |
Not used with S15, 2R3 |
|
Search Keywords |
| |
|
Document Category |
Service Parts | |
|
Date Created |
25-01-99 | |
|
Last Updated |
25-01-99 | |
|
Revision Date |
| |
|
Brand |
IBM Aptiva | |
|
Product Family |
Aptiva | |
|
Machine Type |
2144 | |
|
Model |
s15; 2r3 | |
|
