TP 560X - 1150 LCD Cable and Hinges
Applicable to: World-Wide
1150 LCD Cable and Hinges:
DIMM Card (If installed) (1020)
Battery Pack (1030)
Keyboard Unit (1050)
LCD Assembly (1060) file
LCD Front Cover (1120)
LCD Panel (1130)
Inverter Card (1140)

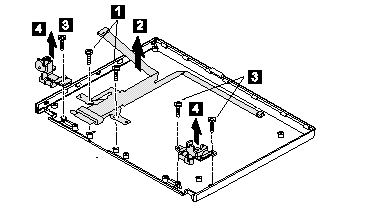

DSTN:
1 2 : LCD cable
3 4 : Hinges
When replacing:
See the following figure:
|
Step |
Length (Quantity) |
Torque |
|
1 |
M 2.5 x 6 mm (2) flathead |
3.0 kgcm |
|
3 |
M 2.5 x 6 mm (3) flathead |
3.0 kgcm |
|
Note: |
Do not use the screw that you have removed. |
|
Use a new screw and tighten the screw to the torque specification shown. |
TFT:
1 2 : LCD cable
3 4 : Hinges
When replacing:
See the following figure:
|
Step |
Length (Quantity) |
Torque |
|
1 |
M 2.5 x 6 mm (2) flathead |
3.0 kgcm |
|
3 |
M 2.5 x 6 mm (3) flathead |
3.0 kgcm |
|
Note: |
Do not use the screw that you have removed. |
|
Use a new screw and tighten the screw to the torque specification shown. |
|
