Netfinity 7000 M10 - System Parts Listing

75.567 bytes

Parts Information

Document ID: DDSE-469M8Q

Netfinity 7000 M10 - System Parts Listing

Applicable to: World-Wide

Source: Hardware Maintenance Manual

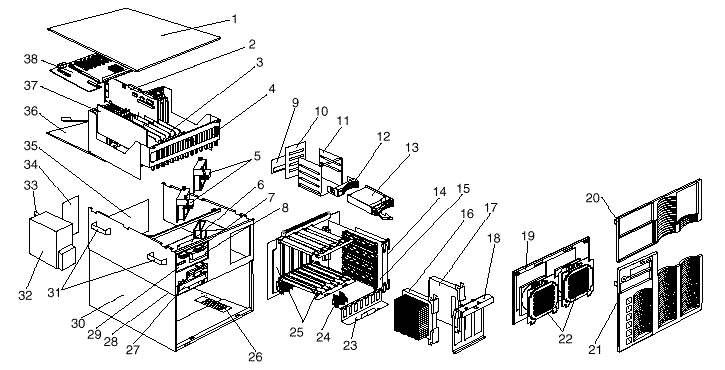

Parts Listing (Netfinity 7000-M10 - Type 8680)

System

Index

System (Netfinity 7000-M10 - Type 8680)
Models 1RU, 2RU, 3RU, 4RU, 5RU

FRU No.

1

Top Cover with Captive Screw
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

12J3063

2

I/O Function Card
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

93H9914

3

Adapter Dividers Included in Hot Plug Kit (28L4526)

N/A

4

Shuttle Assembly
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

10L6934

5

Fan 92mm Hot Plug with Bracket
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

03K9092

6

VDF Control Card
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

93H9926

7

Light Box LED Holder
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

03K9087

8

Status Cover Lens
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)
Status Cover Lens Overlay (LED Icons Transparency)
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

28L4529

28L4550

9

SCSI Backplane Safety Card
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

07L4753

10

SCSI Backplane
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

94H0714

11

DASD 4-Drive Cage Assembly
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

03K9098

12

Hard Drive Bezel Filler
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

12J3072

13

Hard Disk Drive, option
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

N/A

14

Memory Terminator Card
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

94H0604

15

Memory Card
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

93H9902

16

400MHz Processor with 512 KB (Model 1RU)
400MHz Processor with 1 MB (Model 2RU)
450MHz Processor with 512 KB (Model 3RU)
450MHz Processor with 1 MB (Model 4RU)
450MHz Processor with 2 MB (Model 5RU)

03K9099
03K9100
28L4557
28L4558
03K9101

16

500MHz Processor with 512 KB (Model 6RY)
500MHz Processor with 1 MB (Model 7RY)
500MHz Processor with 2 MB (Model 8RY)

28L4441
28L4442
28L4443

17

Processor Terminator Card
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)
Processor Retention Bracket
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

94H0598

10L6916

18

Processor Retention Bracket
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

10L6943

19

Fan/Processor Access Plate
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

03K9090

20

Front Bezel Top
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

03K9095

21

Front Bezel Bottom
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

03K9094

22

Fan 127mm Hot Plug with Bracket
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

03K9091

23

VRM Retention Bracket
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

03K9082

24

VRM (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

01K7371

25

CPU Processor Backplane (Models 1RU, 2RU, 3RU, 4RU, 5RU)
Processor Backplane with Brackets (Models 1RU, 2RU)
Processor Backplane with Brackets (Models 3RU, 4RU, 5RU. 6RY, 7RY, 8RY)

03K8883
93H9908
19L0140

26

Memory Card Guides
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

03K9093

27

32X CD-ROM Drive, primary source
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)
32X CD-ROM Drive, secondary source
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

02K1119

02K3414

28

1.44MB Diskette Drive
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

76H4091

29

VFD Display Panel
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

12J4633

30

Base Frame Assembly
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

03K9089

31

Lift Handle
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

03K9069

32

400W Power Supply Assembly with Handle
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)
400W Power Supply Assembly with 32MM Fan, optional
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

28L0469

76H6589

34

Power Supply Filler Plate
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

28L0470

35

Power Backplane Box Assembly
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

03K9096

36

Shuttle Eject Plate Assembly
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

10L6922

37

System Management Card (Adapter)
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)
Note: Update to latest microcode.

07L5496
(replaces 93H9944)

38

I/O Backplane
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)
Note: Update to latest BIOS.

19L0140

32 MB DIMM (Models 1RU)

28L0479

64 MB DIMM (Models 2RU, 3RU, 4RU, 5RU)

01K7367

128 MB DIMM, optional
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

01K7368

128 MB Advance DIMM, optional
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

28L4549

256 MB ECC 3.3V BUF DIMM, optional
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

01K7369

AC Power Assembly
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

10L6946

Battery
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

33F8354

Cable Management Arm
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

12J3088

Cable Management Arm Bracket
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

12J3089

Bracket Display/Control Card
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

03K9086

CD-ROM Mounting Brackets
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

12J3066

Chassis Flange Left
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

12J7039

Chassis Flange Right
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

12J7038

Diskette Tray Bracket
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

12J3065

Dual Cord Power Unit
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

10L7032

Fan Power to Power Backplane Cable
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

03K9176

Front Panel Panel Card
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

93H9938

Front Panel to I/O Function Card Cable 20-Pin
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

03K9346

Hard Disk Drive to I/O Card Cable
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

03K9191

Hot Plug Kit (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)
- Switch Card TTG to Chassis (1 each)
- Retention Handles (4 each)
- Filler Plate Bracket (4 each)
- ISA I/O Card Guide (1 each)
- PCI I/O Guide (6 each)
- PCI Card Guide Insulator (5 each)
- PCI Card Clamps (4 each)
- Insulator with Light Pipes (5 each)
- PCI Card to Shuttle Screw (2 each)
- M3x5 Handle Screws (5 each)

28L4526

Front Panel Switch 4-Switches Cable
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

03K9345

I/0 Board to CD-ROM Cable
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

03K9192

I/O Shield
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

03K9079

Line Cord Strain Relief Assembly
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

01K6934

Miscellaneous Label Kit
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)
- System Service Label (1 each)
- Processor Service Label (1 each)

10L6938 replaced by 37L0196

Miscellaneous Parts Kit
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)
- 32X5/16 Screws (5 each)
- M3.5X8 Plastite Screws (3 each)
- M3X5 CD/Bracket Screws (9 each)
- M3.5X7 Processor Card Screws (15 each)
- 6-32X3/16 Screws (9 each)
- 3.9ID Nylon Washers (3 each)
- Lock Hole Plug (1 each)
- Cable Tie (3 each)
- Fan Grommets (5 each)

12J3079

Miscellaneous Rack Kit
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)
- M6X16 Slide/Bracket without Rack (17 each)
- M3.5X7 EIA Flanges to Chassis Screws (7 each)
- M4X8 Slides to Chassis Screws (9 each)
- M6 Slide/Bracket to Rack Nut Clips (7 each)
- M6 Flange Arm to Bracket Nuts (3 each)

12J3090

Miscellaneous Shuttle Kit
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)
- PCI EMC Shield (1 each)
- I/O Board Insulator (1 each)
- Cable Clamps (2 each)
- Wide EMC Clips (13 each)
- EMC Clip (5 each)
- Cable Clamp (1 each)
- Fan Duct Seal (2 each)

10L6948

Nut Bar
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

01K6662

PCI Sensor Card (Hot-Swap Switch Card)
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

94H0859

Plate Processor Backer
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

03K9085

Processor Mounting Kit
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)
- Processor Guides (8 each)
- Support Processor Bracket (2 each)
- M3.5x7 Chassis Screws (9 each)
- M3.5x10 Phillips Head Screws (16 each)
- Cam Lever (8 each)
- VRM Bracket (8 each)

03K9083

Processor Terminator Card Guide
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

10L6936

Power Backplane to Fan, Fixed Disk, and CD-ROM Cable
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

03K9190

Power Backplane to Processor Cable
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

03K9183

Power Control Card and Bracket
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

03K9097

Power SCSI Backplane to Power Backplane Cable
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

03K9194

Power Supply Handle
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

28L0473

Rack Slides
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

12J3086

SCSI Backplane to I/O Card Cable
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

03K9189

SCSI to Rear Panel Cable
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

03K9342

Serial Cable
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

03K9318

System Management Adapter to I/O Card Cable
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

03K9193

Tape Backup Holder Bracket
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

12J5681

Token Ring PCMCIA Card, option
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

85H3656

Token Ring Cable, option
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

03K9323

VFD Display Cable
(Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)

03K9347

Rack to Tower Conversion Options (All Models)

Option

FRU No.

Side Covers

12J3281

Side Cover Brackets

28L4567

Lock Linkage

01K6636

Lock and Pawl

01K6641

Brackets Side Cover

12J7040 replaced by 28L4567

Lens/Door Bezel

03K9080

Door Assembly

03K9081

Fixed Caster

12J3279

Swivel Caster

12J3283

C2 Switch Cable Assembly

03K9344

Search Keywords

Document Category

Service Parts

Date Created

23-03-99

Last Updated

21-05-99

Revision Date

16-04-2000

Brand

IBM PC Server

Product Family

Netfinity 7000 M10

Machine Type

8680

Model

TypeModel

Retain Tip (if applicable)

Reverse Doclinks
and Admin Purposes

Index	System (Netfinity 7000-M10 - Type 8680) Models 1RU, 2RU, 3RU, 4RU, 5RU	FRU No.
1	Top Cover with Captive Screw (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	12J3063
2	I/O Function Card (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	93H9914
3	Adapter Dividers Included in Hot Plug Kit (28L4526)	N/A
4	Shuttle Assembly (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	10L6934
5	Fan 92mm Hot Plug with Bracket (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	03K9092
6	VDF Control Card (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	93H9926
7	Light Box LED Holder (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	03K9087
8	Status Cover Lens (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY) Status Cover Lens Overlay (LED Icons Transparency) (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	28L4529 28L4550
9	SCSI Backplane Safety Card (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	07L4753
10	SCSI Backplane (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	94H0714
11	DASD 4-Drive Cage Assembly (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	03K9098
12	Hard Drive Bezel Filler (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	12J3072
13	Hard Disk Drive, option (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	N/A
14	Memory Terminator Card (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	94H0604
15	Memory Card (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	93H9902
16	400MHz Processor with 512 KB (Model 1RU) 400MHz Processor with 1 MB (Model 2RU) 450MHz Processor with 512 KB (Model 3RU) 450MHz Processor with 1 MB (Model 4RU) 450MHz Processor with 2 MB (Model 5RU)	03K9099 03K9100 28L4557 28L4558 03K9101
16	500MHz Processor with 512 KB (Model 6RY) 500MHz Processor with 1 MB (Model 7RY) 500MHz Processor with 2 MB (Model 8RY)	28L4441 28L4442 28L4443
17	Processor Terminator Card (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY) Processor Retention Bracket (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	94H0598 10L6916
18	Processor Retention Bracket (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	10L6943
19	Fan/Processor Access Plate (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	03K9090
20	Front Bezel Top (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	03K9095
21	Front Bezel Bottom (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	03K9094
22	Fan 127mm Hot Plug with Bracket (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	03K9091
23	VRM Retention Bracket (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	03K9082
24	VRM (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	01K7371
25	CPU Processor Backplane (Models 1RU, 2RU, 3RU, 4RU, 5RU) Processor Backplane with Brackets (Models 1RU, 2RU) Processor Backplane with Brackets (Models 3RU, 4RU, 5RU. 6RY, 7RY, 8RY)	03K8883 93H9908 19L0140
26	Memory Card Guides (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	03K9093
27	32X CD-ROM Drive, primary source (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY) 32X CD-ROM Drive, secondary source (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	02K1119 02K3414
28	1.44MB Diskette Drive (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	76H4091
29	VFD Display Panel (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	12J4633
30	Base Frame Assembly (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	03K9089
31	Lift Handle (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	03K9069
32	400W Power Supply Assembly with Handle (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY) 400W Power Supply Assembly with 32MM Fan, optional (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	28L0469 76H6589
34	Power Supply Filler Plate (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	28L0470
35	Power Backplane Box Assembly (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	03K9096
36	Shuttle Eject Plate Assembly (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	10L6922
37	System Management Card (Adapter) (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY) Note: Update to latest microcode.	07L5496 (replaces 93H9944)
38	I/O Backplane (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY) Note: Update to latest BIOS.	19L0140
	32 MB DIMM (Models 1RU)	28L0479
	64 MB DIMM (Models 2RU, 3RU, 4RU, 5RU)	01K7367
	128 MB DIMM, optional (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	01K7368
	128 MB Advance DIMM, optional (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	28L4549
	256 MB ECC 3.3V BUF DIMM, optional (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	01K7369
	AC Power Assembly (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	10L6946
	Battery (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	33F8354
	Cable Management Arm (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	12J3088
	Cable Management Arm Bracket (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	12J3089
	Bracket Display/Control Card (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	03K9086
	CD-ROM Mounting Brackets (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	12J3066
	Chassis Flange Left (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	12J7039
	Chassis Flange Right (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	12J7038
	Diskette Tray Bracket (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	12J3065
	Dual Cord Power Unit (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	10L7032
	Fan Power to Power Backplane Cable (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	03K9176
	Front Panel Panel Card (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	93H9938
	Front Panel to I/O Function Card Cable 20-Pin (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	03K9346
	Hard Disk Drive to I/O Card Cable (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	03K9191
	Hot Plug Kit (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY) - Switch Card TTG to Chassis (1 each) - Retention Handles (4 each) - Filler Plate Bracket (4 each) - ISA I/O Card Guide (1 each) - PCI I/O Guide (6 each) - PCI Card Guide Insulator (5 each) - PCI Card Clamps (4 each) - Insulator with Light Pipes (5 each) - PCI Card to Shuttle Screw (2 each) - M3x5 Handle Screws (5 each)	28L4526
	Front Panel Switch 4-Switches Cable (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	03K9345
	I/0 Board to CD-ROM Cable (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	03K9192
	I/O Shield (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	03K9079
	Line Cord Strain Relief Assembly (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	01K6934
	Miscellaneous Label Kit (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY) - System Service Label (1 each) - Processor Service Label (1 each)	10L6938 replaced by 37L0196
	Miscellaneous Parts Kit (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY) - 32X5/16 Screws (5 each) - M3.5X8 Plastite Screws (3 each) - M3X5 CD/Bracket Screws (9 each) - M3.5X7 Processor Card Screws (15 each) - 6-32X3/16 Screws (9 each) - 3.9ID Nylon Washers (3 each) - Lock Hole Plug (1 each) - Cable Tie (3 each) - Fan Grommets (5 each)	12J3079
	Miscellaneous Rack Kit (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY) - M6X16 Slide/Bracket without Rack (17 each) - M3.5X7 EIA Flanges to Chassis Screws (7 each) - M4X8 Slides to Chassis Screws (9 each) - M6 Slide/Bracket to Rack Nut Clips (7 each) - M6 Flange Arm to Bracket Nuts (3 each)	12J3090
	Miscellaneous Shuttle Kit (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY) - PCI EMC Shield (1 each) - I/O Board Insulator (1 each) - Cable Clamps (2 each) - Wide EMC Clips (13 each) - EMC Clip (5 each) - Cable Clamp (1 each) - Fan Duct Seal (2 each)	10L6948
	Nut Bar (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	01K6662
	PCI Sensor Card (Hot-Swap Switch Card) (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	94H0859
	Plate Processor Backer (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	03K9085
	Processor Mounting Kit (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY) - Processor Guides (8 each) - Support Processor Bracket (2 each) - M3.5x7 Chassis Screws (9 each) - M3.5x10 Phillips Head Screws (16 each) - Cam Lever (8 each) - VRM Bracket (8 each)	03K9083
	Processor Terminator Card Guide (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	10L6936
	Power Backplane to Fan, Fixed Disk, and CD-ROM Cable (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	03K9190
	Power Backplane to Processor Cable (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	03K9183
	Power Control Card and Bracket (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	03K9097
	Power SCSI Backplane to Power Backplane Cable (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	03K9194
	Power Supply Handle (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	28L0473
	Rack Slides (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	12J3086
	SCSI Backplane to I/O Card Cable (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	03K9189
	SCSI to Rear Panel Cable (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	03K9342
	Serial Cable (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	03K9318
	System Management Adapter to I/O Card Cable (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	03K9193
	Tape Backup Holder Bracket (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	12J5681
	Token Ring PCMCIA Card, option (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	85H3656
	Token Ring Cable, option (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	03K9323
	VFD Display Cable (Models 1RU, 2RU, 3RU, 4RU, 5RU, 6RY, 7RY, 8RY)	03K9347

Option	FRU No.
Side Covers	12J3281
Side Cover Brackets	28L4567
Lock Linkage	01K6636
Lock and Pawl	01K6641
Brackets Side Cover	12J7040 replaced by 28L4567
Lens/Door Bezel	03K9080
Door Assembly	03K9081
Fixed Caster	12J3279
Swivel Caster	12J3283
C2 Switch Cable Assembly	03K9344

	Search Keywords
	Document Category	Service Parts
	Date Created	23-03-99
	Last Updated	21-05-99
	Revision Date	16-04-2000
	Brand	IBM PC Server
	Product Family	Netfinity 7000 M10
	Machine Type	8680
	Model
	TypeModel
	Retain Tip (if applicable)
	Reverse Doclinks and Admin Purposes
