Parts Information |
Document ID: DJON-3KLS2A |
3519 Rack Storage Expansion Enclosure - System Parts Listing
Applicable to: World-Wide
Source: Hardware Maintenance Manual
System (Model R01)
|
Index |

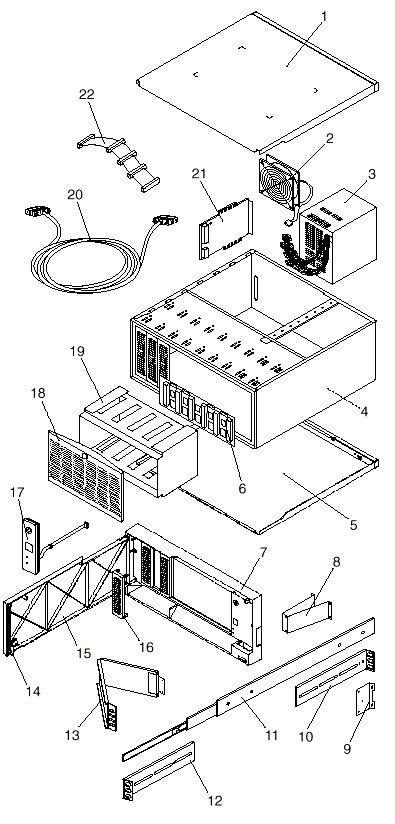

System (PC Server Rack Storage Enclosure - Type 3519) Model R01 |
FRU No. |
|
1 |
Access Cover with Rear Bezel |
72H2643 |
|
2 |
Fan Assembly 120 mm with Connector |
60H9308 |
|
3 |
200W UV PFC Power Supply Assembly |
60H8301 |
|
4 |
Base Frame Assembly |
60H9283 |
|
5 |
Access Cover with Rear Bezel |
72H2643 |
|
6 |
Hot-Plug Backplane |
06H8576 |
|
7 |
Front Bezel Rack |
60H8300 |
|
8 |
Cable Management Arm Bracket |
72H2674 |
|
9 |
Chassis Draw Bracket |
72H2676 |
|
10 |
Slide Management Bracket |
72H2655 |
|
11 |
Rack Slides |
72H2653 |
|
12 |
Slide Management Bracket |
72H2655 |
|
13 |
Cable Management Arm |
72H2657 |
|
14 |
Keylock with Keys |
33F8433 |
|
15 |
Front Door Assembly Rack |
60H8308 |
|
16 |
5.25-Inch Blank Bezel |
76H3451 |
|
17 |
LED/On/Off Switch Cable Assembly |
60H8302 |
|
18 |
Hot-Swap Door Assembly |
60H9284 |
|
19 |
DASD Tray |
06H2652 |
|
20 |
4.3 m 68/68 Cable |
76H0501 |
|
21 |
SCSI Repeater Card |
93H6409 |
|
22 |
Internal SCSI Cable 5X |
60H8304 |
|
Miscellaneous Parts Kit |
55H8179 | |
|
PC Server Label |
60H8306 | |
|
Push Catch and Bracket |
60H9285 |
|
