Aptiva - 2136 System unit service parts
Applicable to: World-Wide

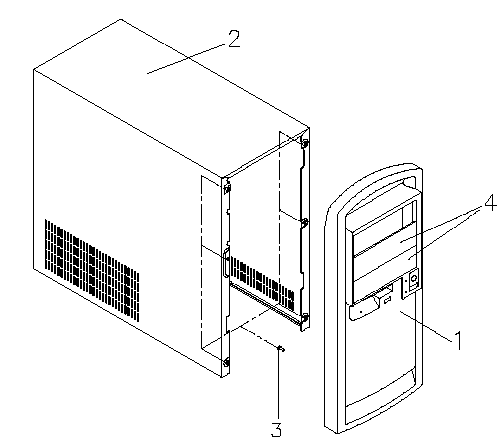

Assembly 1 : System Unit : Exterior
|
Asm-Index |
Part Number |
Description |
|
1-1 |
01K4253 |
Front Bezel |
|
1-2 |
01K4199 |
Top Cover |
|
1-3 |
01K4262 |
Front Bezel Mounting Screws |
|
1-4 |
01K4215 |
5.25-in. Bay Blank Panel |

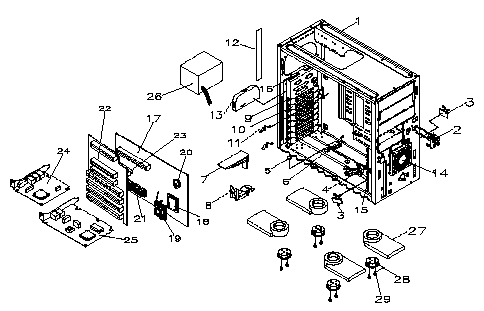

Assembly 2 : System Unit - Interior
|
Asm-Index |
Part Number |
Description |
|
2-1 |
01K4248 |
Assembly Lower Case |
|
2-2 |
01K4254 |
Assembly Wire LED |
|
2-3 |
01K4213 |
Mounting Purse Lock |
|
2-4 |
01K4192 |
Core |
|
2-NS |
01K4207 |
Cable Tie |
|
2-NS |
01K4204 |
3.5-in. Drive Spring |
|
2-5 |
01K4217 |
Rubber |
|
2-6 |
01K4210 |
Hook (for system board, lower) |
|
2-7 |
01K4211 |
Hook (for system board, upper) |
|
2-8 |
01K4203 |
BKT Hook (for riser card) |
|
2-9 |
01K4258 |
Screw Tap |
|
2-10 |
01K4200 |
Bracket Port |
|
2-11 |
01K4276 |
GND Stitch |
|
2-12 |
01K4208 |
I/O Port Plate |
|
2-13 |
01K4212 |
Cover |
|
2-14 |
01K4205 |
Fan Cover |
|
2-NS |
03K0327 |
Spring Wire for Fan Cover |
|
2-15 |
01K4219 |
Card Guide |
|
2-16 |
01K4206 |
Plate GND |
|
2-17 |
01K4239 |
System Board |
|
2-18 |
01K4184 |
Pentium 120 MHz Processor |
|
2-18 |
01K4185 |
Pentium 133 MHz Processor |
|
2-18 |
01K4187 |
Pentium 150 MHz Processor |
|
2-18 |
01K4186 |
Pentium 166 MHz Processor |
|
2-18 |
03K0345 |
Pentium 200 MHz Processor |
|
2-18 |
03K0346 |
Pentium 166 MHz MMX Processor |
|
2-18 |
03K0347 |
Pentium 200 MHz MMX Processor |
|
2-18 |
01K4273 |
IMD P150+ Processor |
|
2-18 |
01K4274 |
IMD P166+ Processor |
|
2-19 |
01K4264 |
Fan Sink |
|
2-NS |
03K0328 |
Flash ROM |
|
2-20 |
01K4278 |
Lithium Battery(CR2032) |
|
2-21 |
01K4236 |
SIMM EDO, 4MB, Non Parity |
|
2-21 |
01K4237 |
SIMM EDO, 8MB, Non Parity |
|
2-21 |
03K0343 |
SIMM EDO, 16MB, Non Parity |
|
2-22 |
01K4238 |
Riser Board(96477) |
|
2-NS |
01K4259 |
Screw for Riser Card |
|
2-NS |
03K0329 |
GND Stitch for Riser Card |
|
2-23 |
01K4223 |
Golden Finger |
|
2-24 |
Audio I/O Board, | |
|
2-25 |
Modem Card, | |
|
2-26 |
01K4247 |
Power Supply (200-W) |
|
2-NS |
01K4261 |
Mounting Screws for Power Supply |
|
2-NS |
01K4227 |
Power Switch and Cable |
|
2-NS |
01K4257 |
Screws for Power Switch |
|
2-27 |
01K4216 |
Foot |
|
2-28 |
01K4218 |
Foot Holder |
|
2-29 |
01K4256 |
Foot Holder Screws |
|
