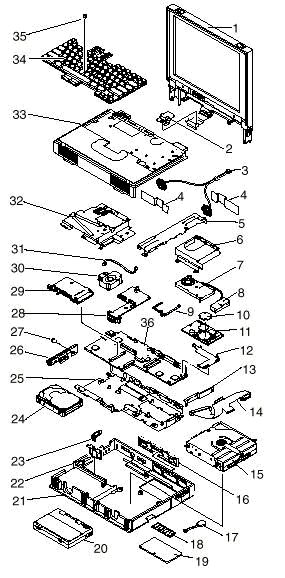

TP 380Z - FRU parts listing
Applicable to: World-Wide
|
Ref. No. |
FRU Name |
FRU No. |
|
1 |
LCD Assembly | |
|
2 |
LCD Cable Holder (included in Base Misc. Parts Kit) |
See below |
|
3 |
Stereo Speaker Assembly |
05K5498 |
|
4 |
ESD Spring |
05K5499 |
|
5 |
Support Plate (included in Base Misc. Parts Kit) |
See below |
|
6 |
Right Shield Case |
05K5237 |
|
7 |
Fan |
05K5494 |
|
8 |
Air Duct (included in Base Misc. Parts Kit) |
See below |
|
9 |
MMO Spacer |
05K5234 |
|
10 |
Thermal Rubber |
05K5235 |
|
11 |
CPU Card |
|
|
|
(233 MHz) |
10L0888 |
|
|
(300 MHz) |
10L1020 |
|
12 |
Heat Sink |
05K4747 |
|
13 |
Connector Bracket (See page 90) |
|
|
14 |
CD/Diskette Drive Connector Assembly (with-CD Model) |
05K2709 |
|
15 |
CD-ROM/Diskette Drive Assembly |
|
|
16 |
Connector Cover |
05K4744 |
|
17 |
Backup Battery |
02K6498 |
|
18 |
SO-DIMM |
|
|
19 |
Memory Slot Cover |
05K4758 |
|
20 |
Battery Pack |
05K6509 |
|
21 |
Base Cover Assembly |
05K4743 |
|
22 |
Battery Pack Lock Assembly |
05K4775 |
|
23 |
Power Switch Knob (included in Base Misc. Parts Kit) |
See below |
|
24 |
Hard Disk Drive |
|
|
25 |
Lower Shield Case |
05K4745 |
|
26 |
HDD Lid |
05K5496 |
|
27 |
HDD Lid Coin Screw |
05K4754 |
|
28 |
DC/DC Card |
10L0930 |
|
29 |
PC Card Slot |
05K4862 |
|
30 |
Box Speaker (includes the Power Switch) |
02K4328 |
|
31 |
Microphone Assembly |
02K4329 |
|
32 |
Upper Shield Case |
05K5495 |
|
33 |
Keyboard Bezel |
05K5497 |
|
34 |
Keyboard |
See below |
|
35 |
TrackPoint Cap | |
|
36 |
System Board |
10L1157 |
|
NS |
Base Misc. Parts Kit includes: |
05K5696 |
|
|
LCD Cable Holder (Ref.No.2) |
|
|
|
Support Plate (Ref.No.4.) |
|
|
|
Air Duct (Ref.No.8) |
|
|
|
Power Switch Knob (Ref.No.23) |
|
|
NS |
Logo for LG Korea |
11J8373 |
|
NS |
Cable Holding Tape |
11J8376 |
Keyboards
|
Nomenclature |
FRU No. |
|
Arabic |
02K4351 |
|
Belgian |
02K4341 |
|
Canadian French |
02K4344 |
|
Czech |
02K4352 |
|
Danish |
02K4343 |
|
Dutch |
02K4337 |
|
French |
02K4335 |
|
German |
02K4334 |
|
Greek |
02K4353 |
|
Hebrew |
02K4354 |
|
Hungarian |
02K4355 |
|
Italian |
02K4336 |
|
Japanese |
02K4333 |
|
Korean |
02K4345 |
|
Latin American Spanish |
02K4348 |
|
Norwegian |
02K4342 |
|
Poland |
02K4357 |
|
Portuguese |
02K4356 |
|
Russian |
02K4346 |
|
Slovakian |
02K4358 |
|
Slovenian |
02K4359 |
|
Spanish |
02K4339 |
|
Swedish or Finnish |
02K4338 |
|
Swiss |
02K4340 |
|
Taiwanese |
02K4347 |
|
Thai |
02K4349 |
|
Turkish |
02K4350 |
|
U.K. English |
02K4332 |
|
U.S. English |
02K4331 |
|
